DTC P0137: O2 Sensor Circuit Low Input (Bank 1 Sensor 2): DTC Detecting Condition

DTC Description
ECM sets DTC P0137 if the ECM detects signal voltage lower than the possible range of a properly operating rear heated oxygen sensor (HO2S).
Conditions for Setting the DTC

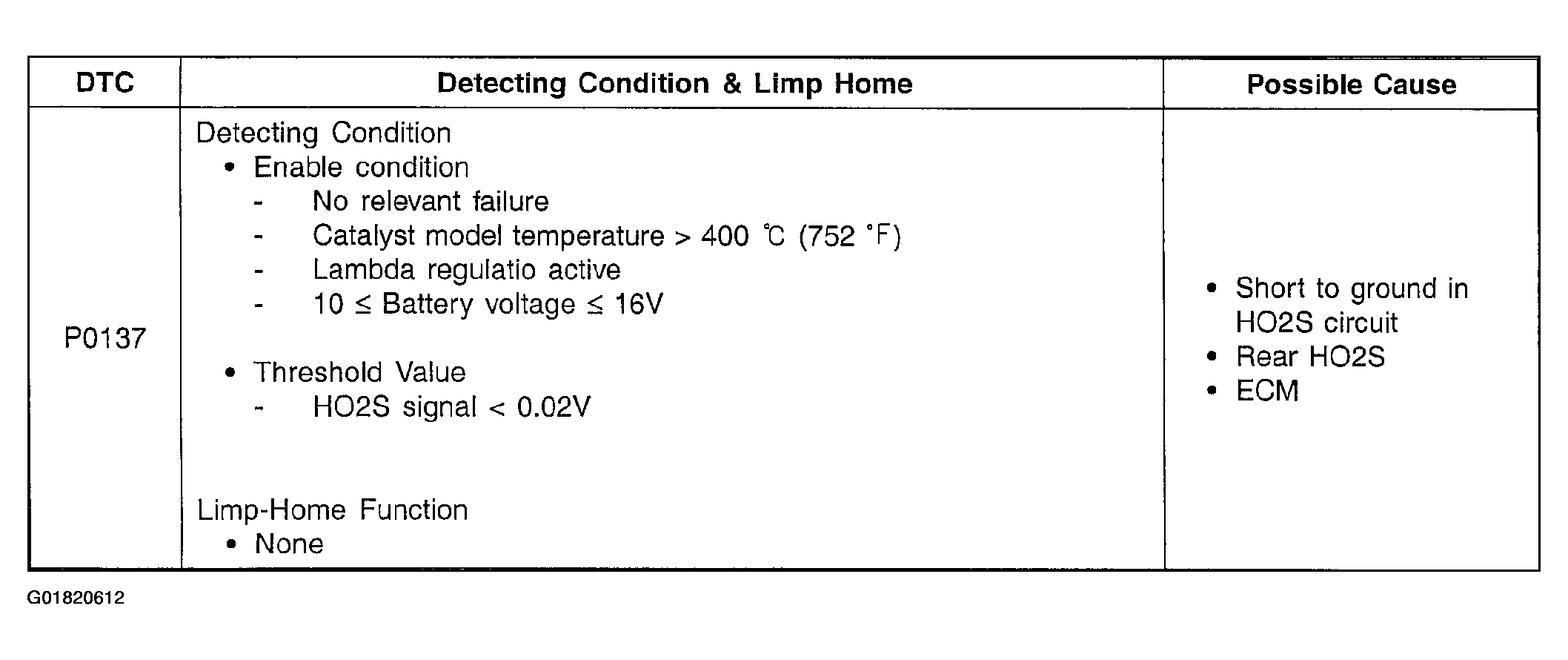

Fig 1: DTC P0137 Condition Chart
Courtesy of KIA MOTORS AMERICA, INC.
