DTC Troubleshooting Procedures - 2.0L
›
Troubleshooting For DTC
›
DTC P0196: Engine Oil Temperature Sensor Circuit Range/Performance
›
Specification
DTC P0196: Engine Oil Temperature Sensor Circuit Range/Performance: Specification

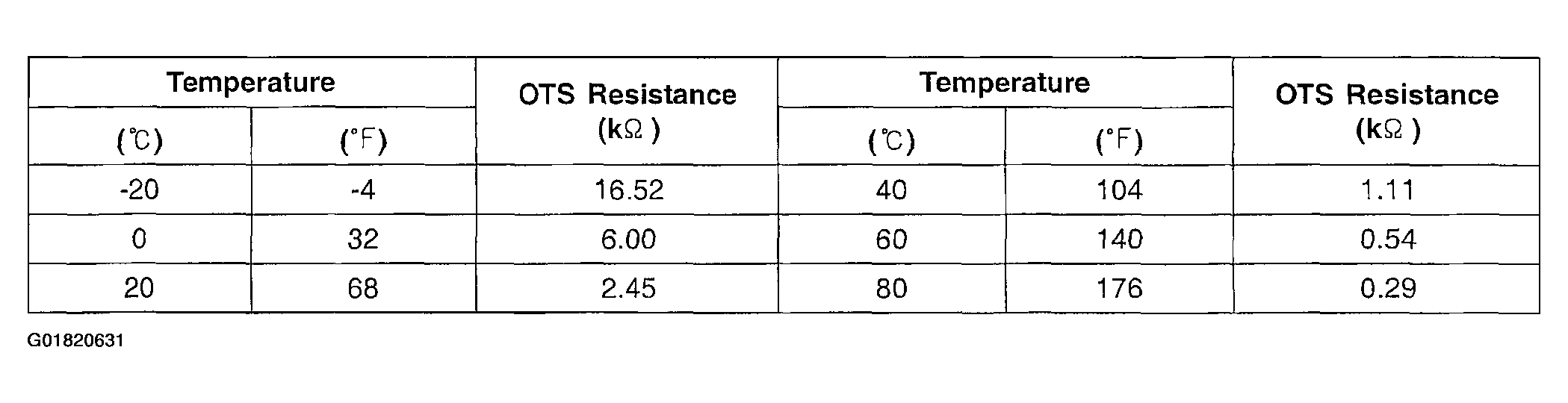

Fig 1: DTC P0196 Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
