DTC P0197: Engine Oil Temperature Sensor Circuit Low Input: DTC Detecting Condition

DTC Description
ECM sets DTC P0197 if the ECM detects signal voltage lower than the possible range of a properly operating OTS.
Conditions for Setting the DTC

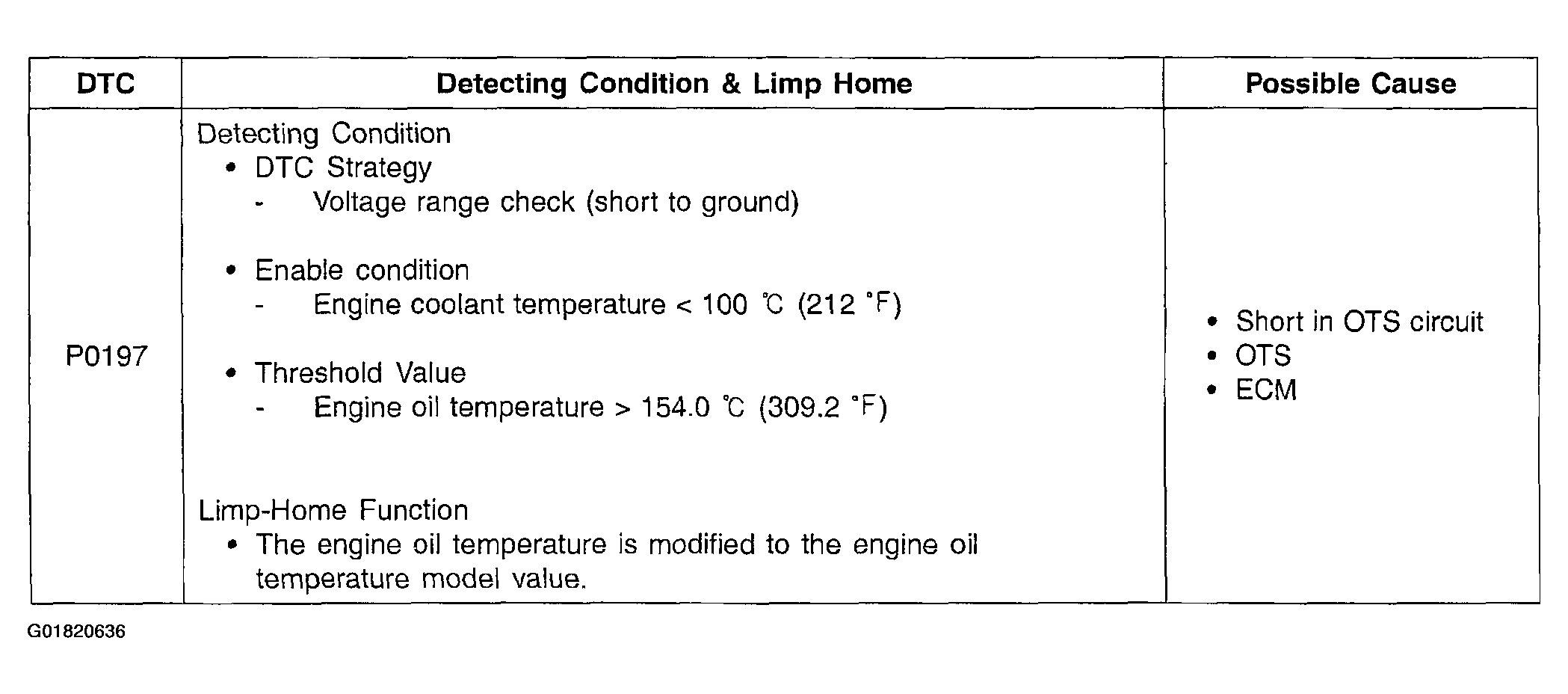

Fig 1: DTC P0197 Condition Chart
Courtesy of KIA MOTORS AMERICA, INC.
