DTC P0198: Engine Oil Temperature Sensor Circuit High Input: DTC Detecting Condition

DTC Description
ECM sets DTC P0198 if the ECM detects signal voltage higher than the possible range of a properly operating OTS.
Conditions for Setting the DTC

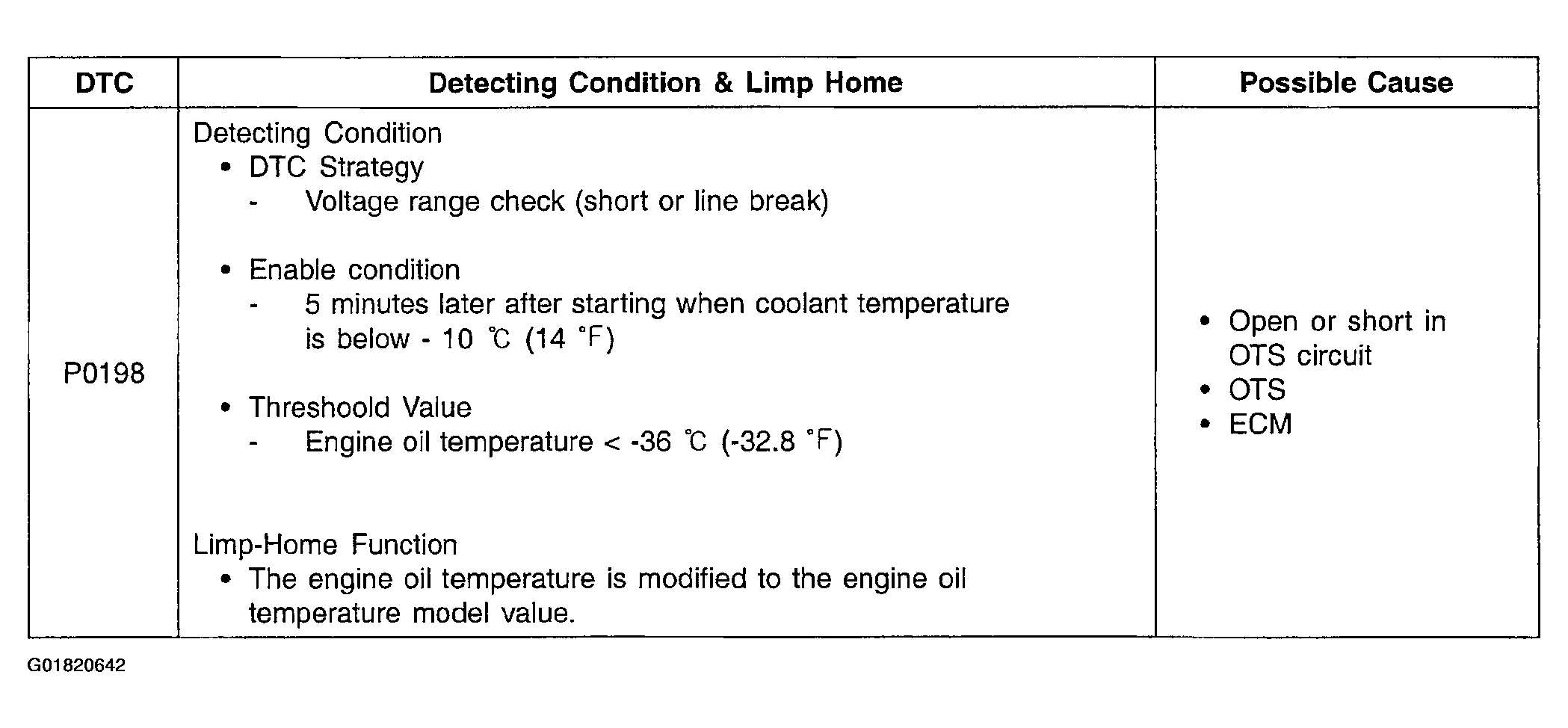

Fig 1: DTC P0198 Condition Chart
Courtesy of KIA MOTORS AMERICA, INC.
