Crankcase Emission Control (PCV) System: Operation

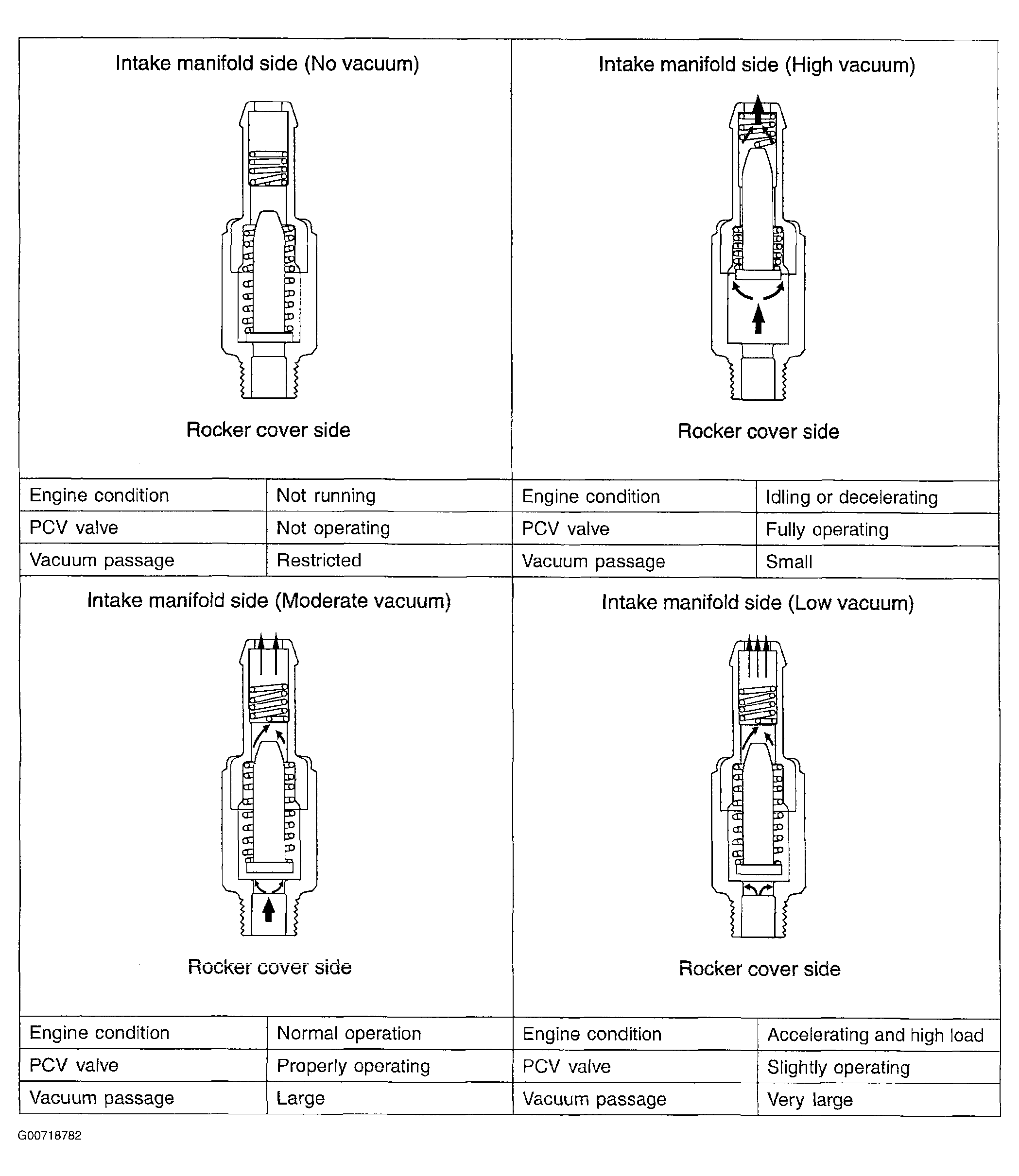

Fig 1: Illustrating PCV Operation
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
