Fuse Index Information: Notes

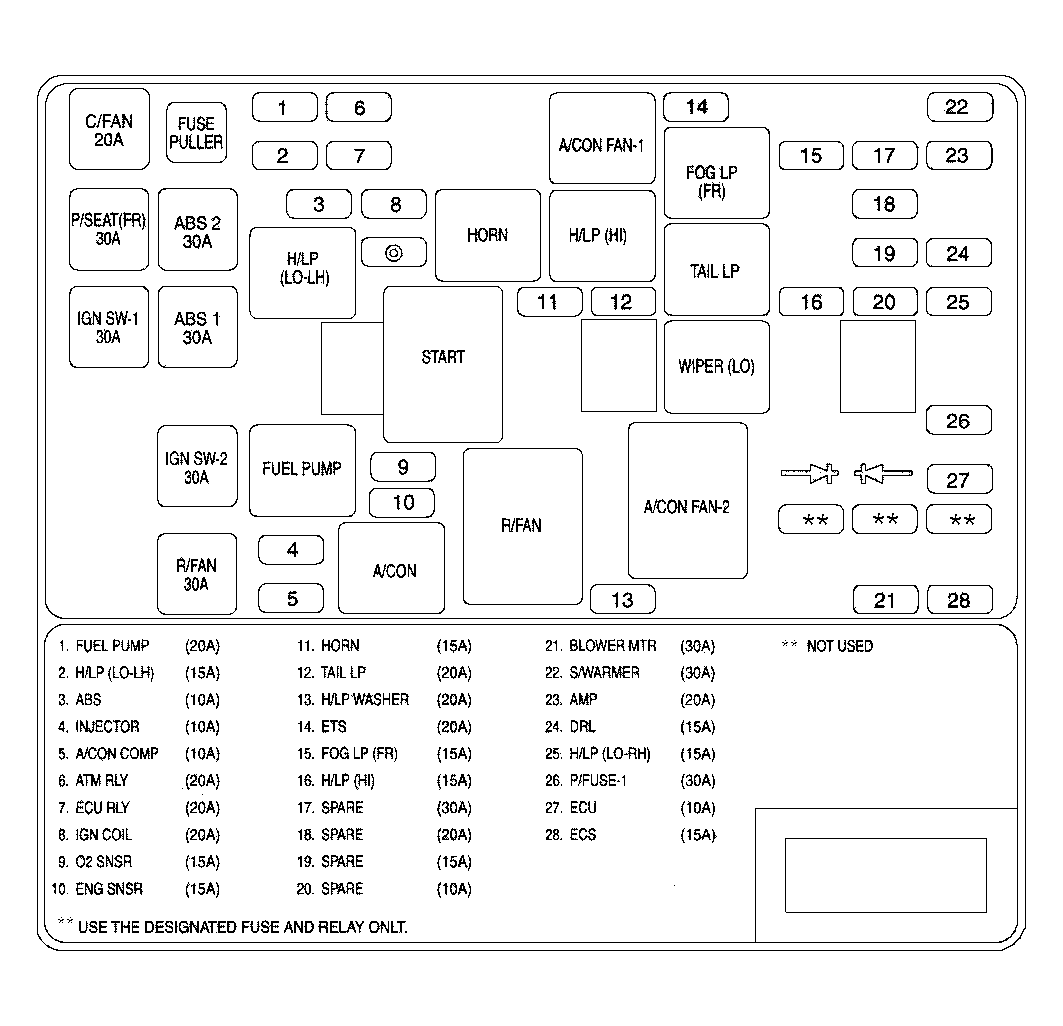

For fuse locations within the engine compartment fuse/relay box, refer to Figure.
IDENTIFYING FUSES (ENGINE COMPARTMENT FUSE/RELAY BOX)
| Description | Fuse Rating | Protected Components | |
|---|---|---|---|
| 1 | FUEL PUMP | 20A | Fuel pump |
| 2 | H/LP (LO-LH) | 15A | Headlight (low-left) |
| 3 | ABS | 10A | Anti-lock brake system |
| 4 | INJECTORS | 10A | Injector |
| 5 | A/CON COMP | 10A | Air-conditioner compressor |
| 6 | ATM RLY | 20A | Automatic transaxle control relay |
| 7 | ECU RLY | 20A | Engine control unit relay |
| 8 | ING COIL | 15A | Ignition coil |
| 9 | O2 SNSR | 15A | Oxygen sensor |
| 10 | ENG SNSR | 15A | Power train control system sensors |
| 11 | HORN | 15A | Horn |
| 12 | TAIL LP | 20A | Tail light |
| 13 | H/LP WASHER | 20A | Headlight washer |
| 14 | ETS | 20A | Electronic throttle system |
| 15 | FOG LP (FR) | 15A | Fog light (front) |
| 16 | H/LP (HI) | 15A | Headlight (high) |
| 17 | SPARE | 30A | Spare fuse |
| 18 | SPARE | 20A | Spare fuse |
| 19 | SPARE | 15A | Spare fuse |
| 20 | SPARE | 15A | Spare fuse |
| 21 | BLOWER MTR | 30A | Blower motor |
| 22 | S/WARMERS | 30A | Seat warmer |
| 23 | AMP | 20A | Radio amplifier |
| 24 | DRL* | 15A | Daytime running light |
| 25 | H/LP(LO-RH) | 15A | Headlight (low beam-right) |
| 26 | P/FUSE-1 | 30A | All electrical system |
| 27 | ECU | 10A | Engine control unit |
| 28 | ECS | 15A | Electronic control suspension |
| NOT USED | ** | Not used | |
| NOT USED | ** | Not used | |
| NOT USED | ** | Not used | |
| C/FAN | 20A | Condenser fan | |
| P/SEAT (FR) | 30A | Power seat (front) | |
| IGN SW-1 | 30A | Ignition switch | |
| ABS 2 | 30A | Anti-lock brake system | |
| ABS 1 | 30A | Anti-lock brake system | |
| IGN SW-2 | 30A | Ignition switch | |
| R/FAN | 30A | Radiator fan | |
| *: Canadian models. **: Use designated fuse and relay only |
|||
