Wheel Pressure Modulation

The ESP control cycles may be inserted into the ABS/TCS load collective at any point as long as the duty cycle for the electric motor does not exceed 20%.

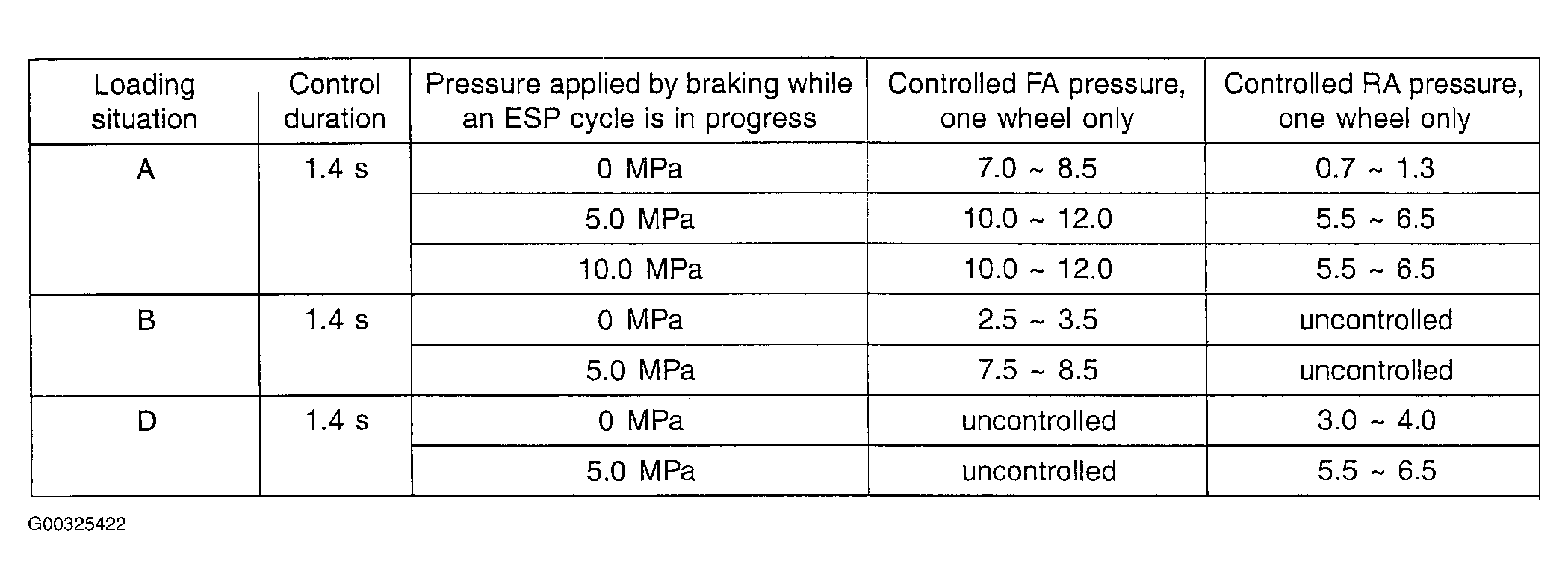

Fig 1: Wheel Pressure Modulation Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

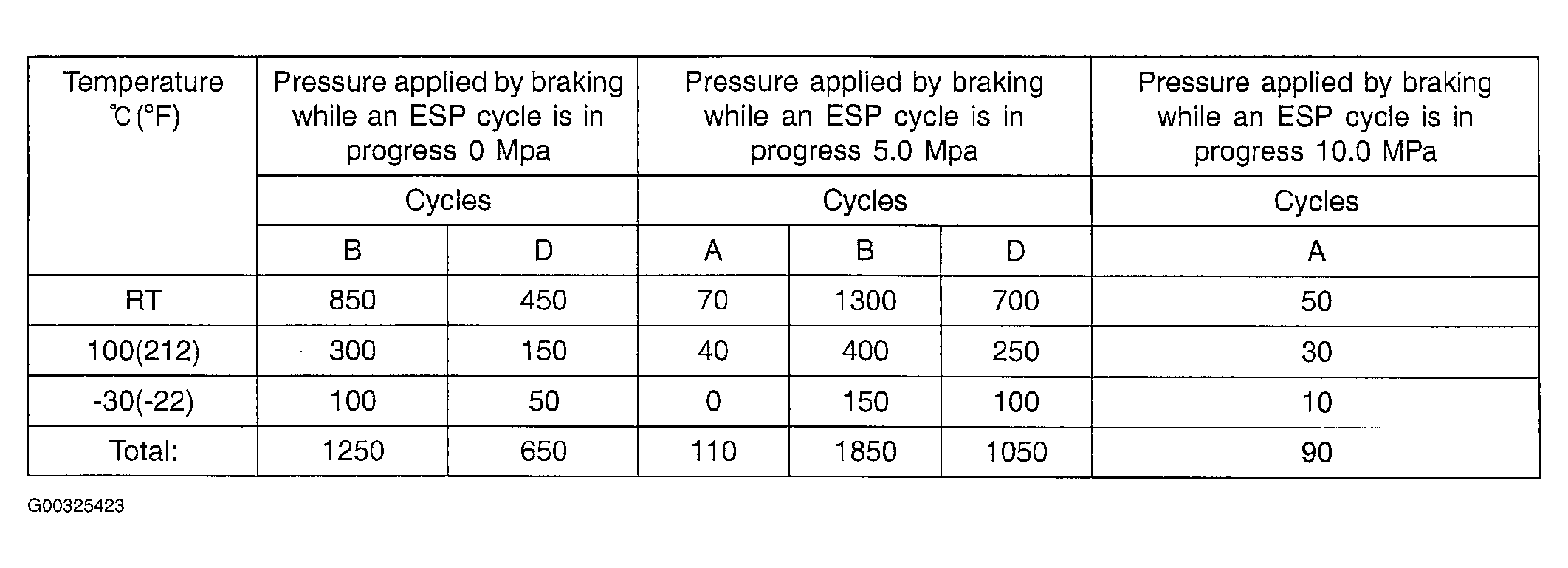

Fig 2: Wheel Pressure Modulation Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
