TCS/Esp Switch Error
TCS/Esp Switch Error

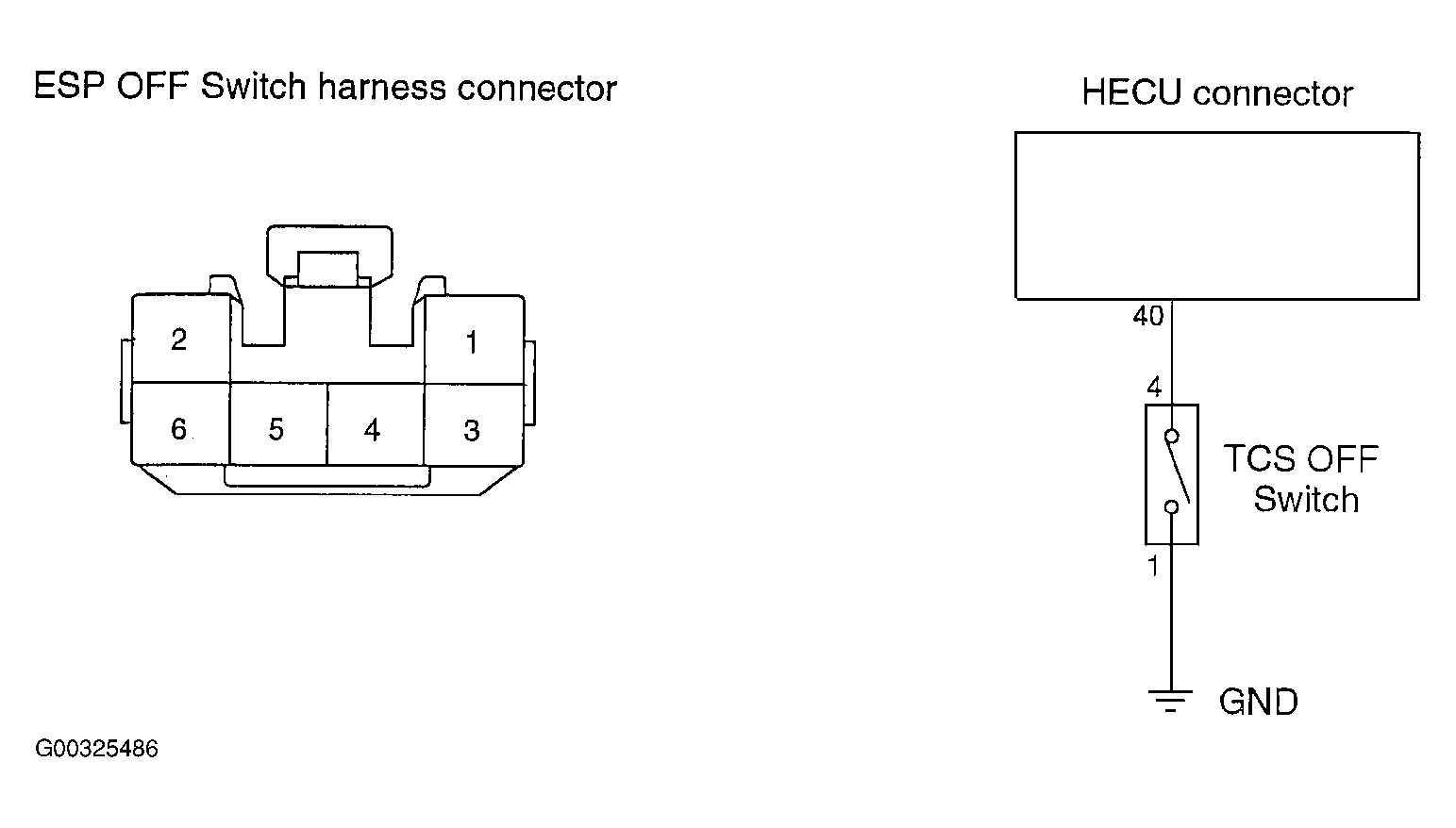

Fig 1: DTC C1503 Trouble Chart (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

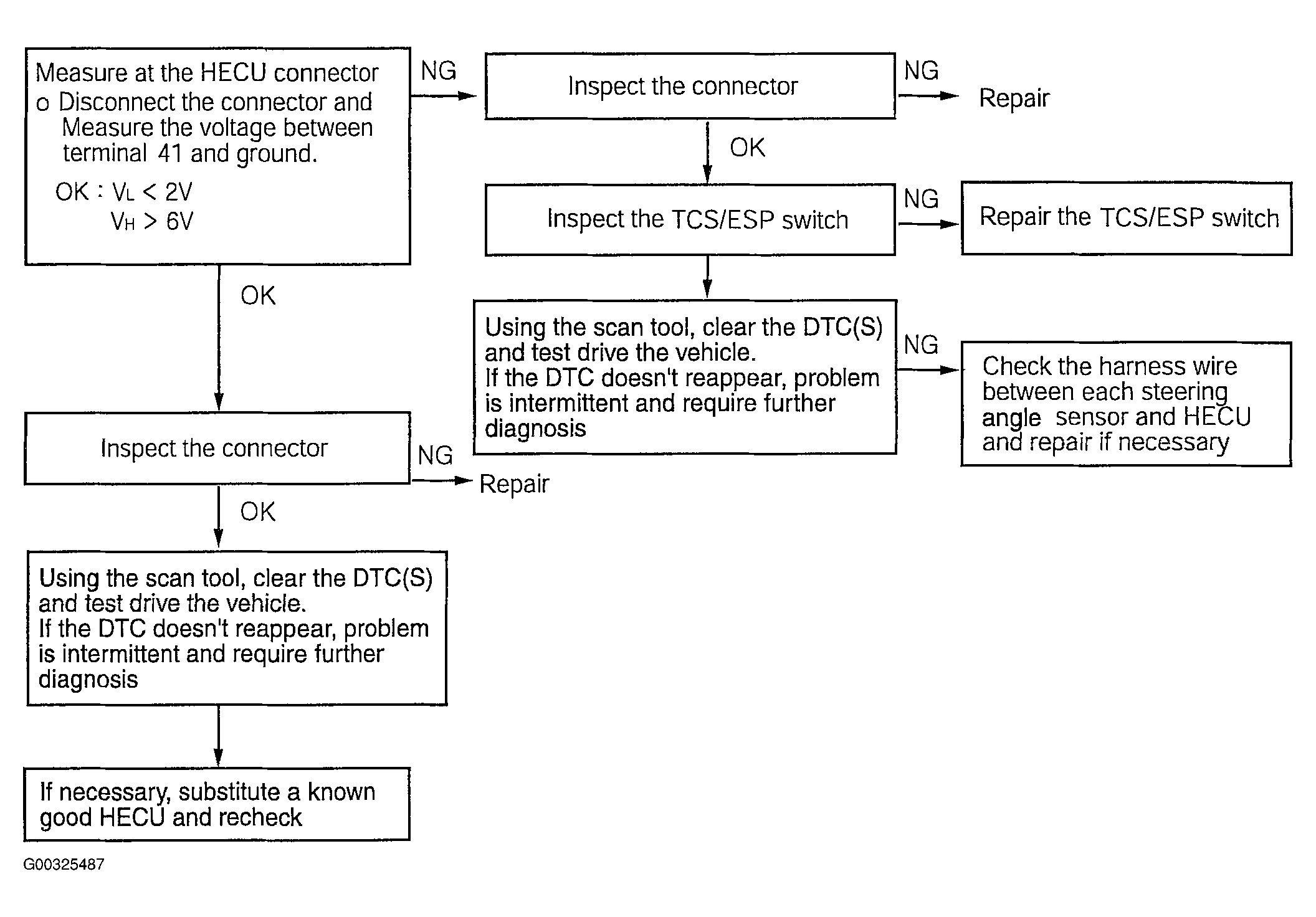

Fig 2: DTC C1503 Trouble Chart (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: DTC C1503 Trouble Chart (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
