DTC P0460 Fuel Level Sensor Circuit
›
Schematic Diagram
Schematic Diagram

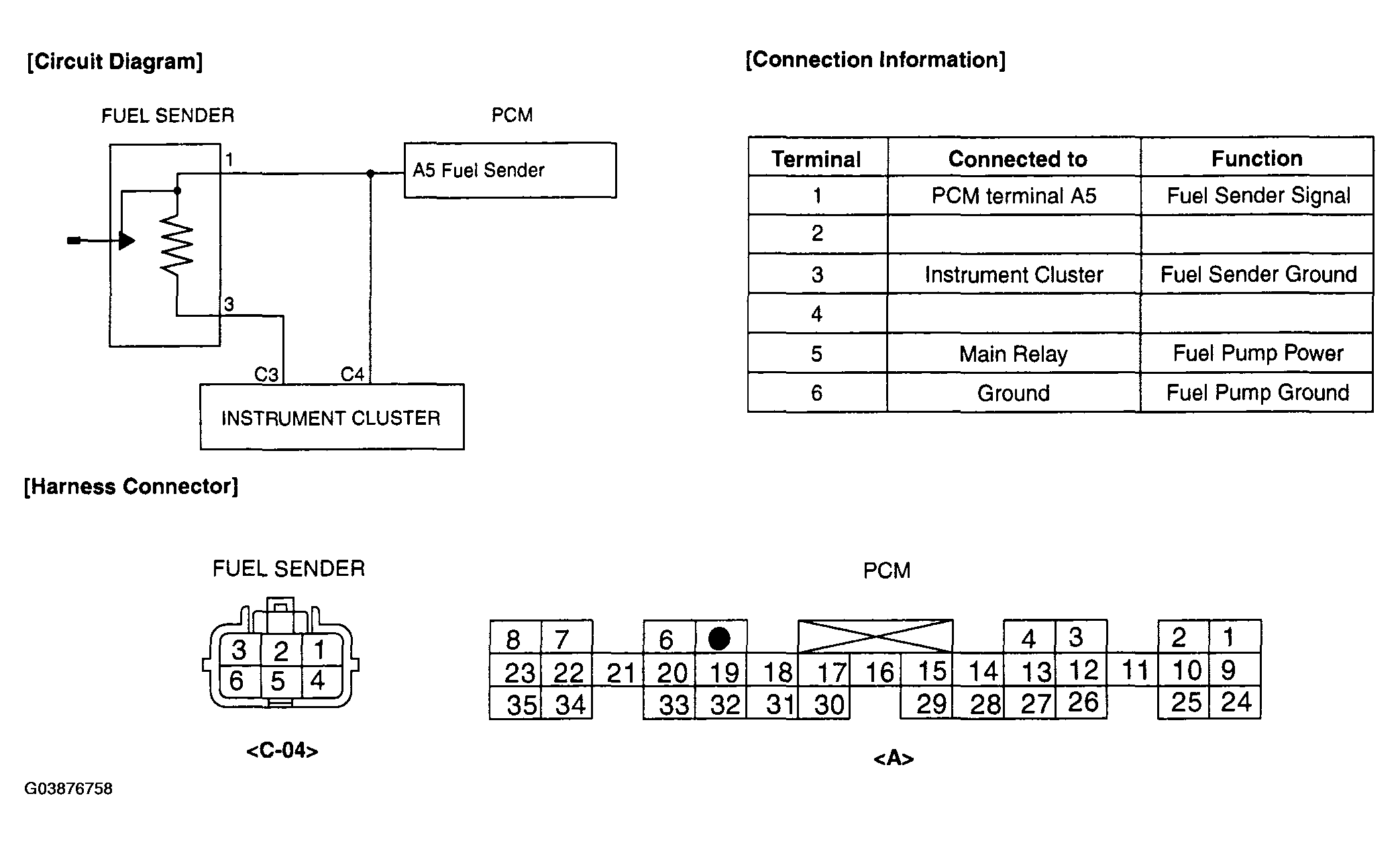

Fig 1: Schematic Diagram Fuel Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
