Actuator Test Mode

  1. Connect scantool to Data Link Connector(DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Select "ACTUATION TEST" on scantool.
  4. Using the scantool, operate ETS motor by force

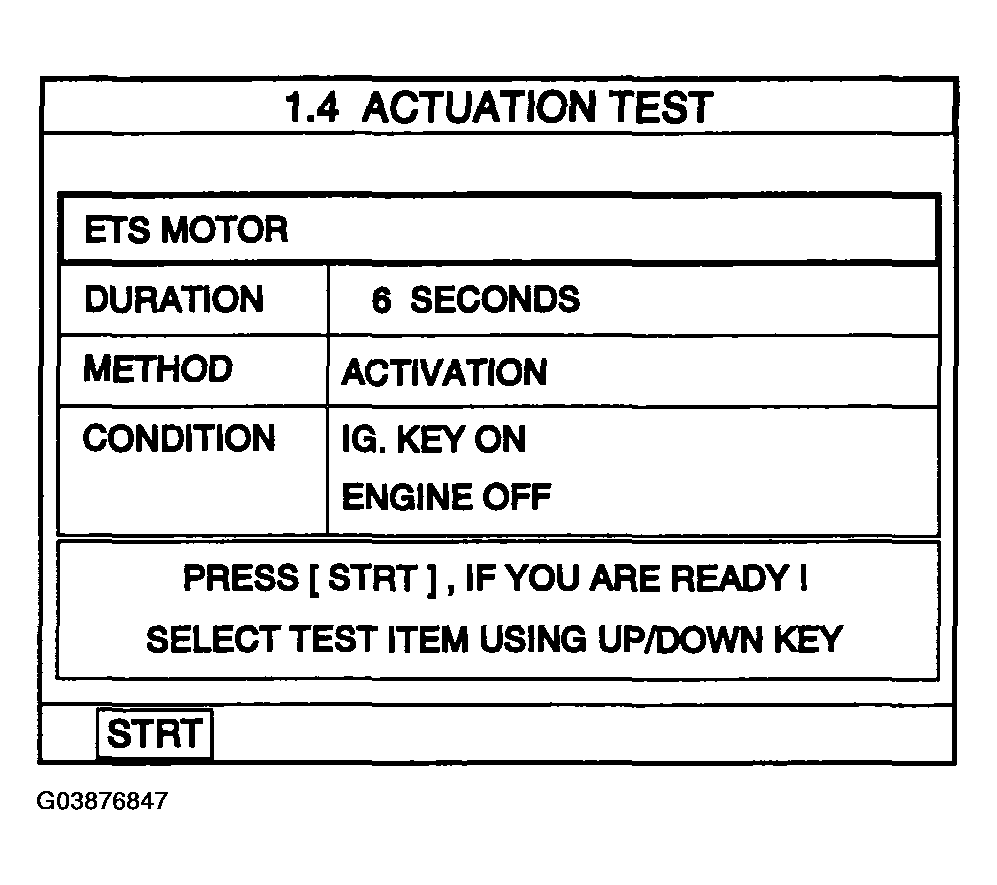

    Fig 1: Selecting "Actuation Test" On Scantool
    G03876847Courtesy of KIA MOTORS AMERICA, INC.
  5. Does the ETS motor operate well?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to "W/Harness Inspection" procedure
