Inspection Procedures For Diagnostic Trouble Codes
›
Code No.P0885 A/T Control relay system
›
A/T Control Relay System
›
Circuit Diagram
Circuit Diagram

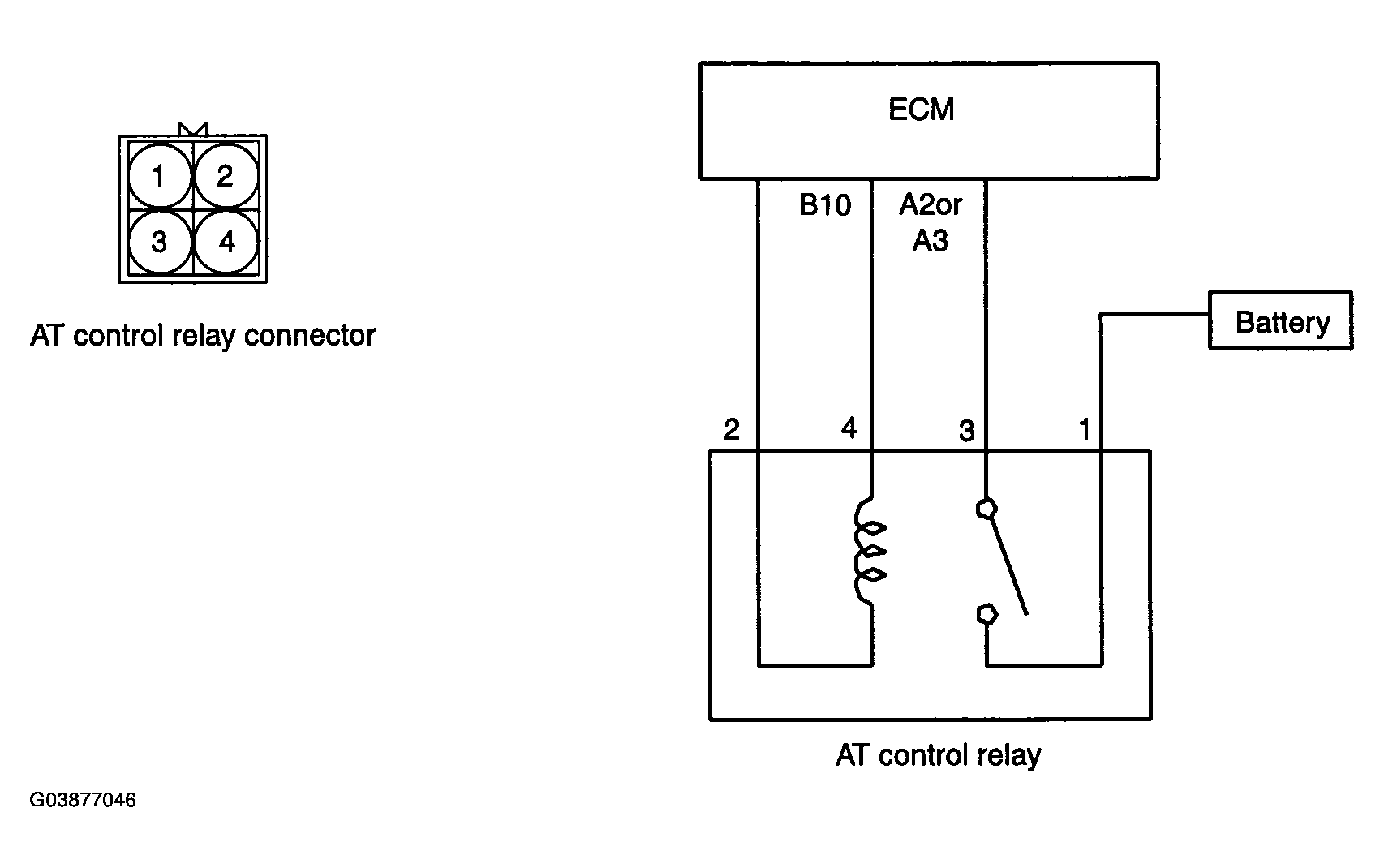

Fig 1: A/T Control Relay System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

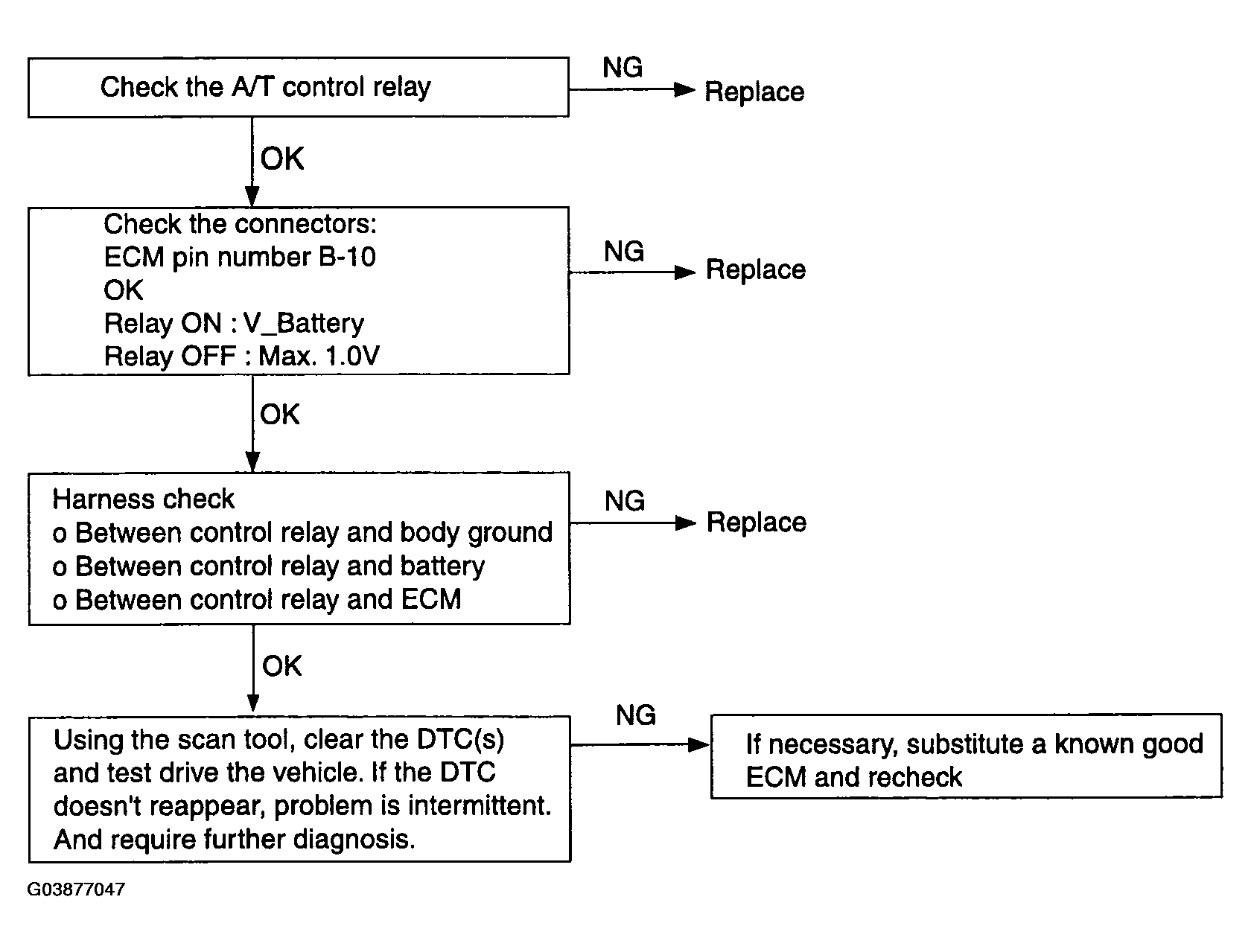

Fig 2: A/T Control Relay System Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
