Reverse And Overdrive Clutch: Components

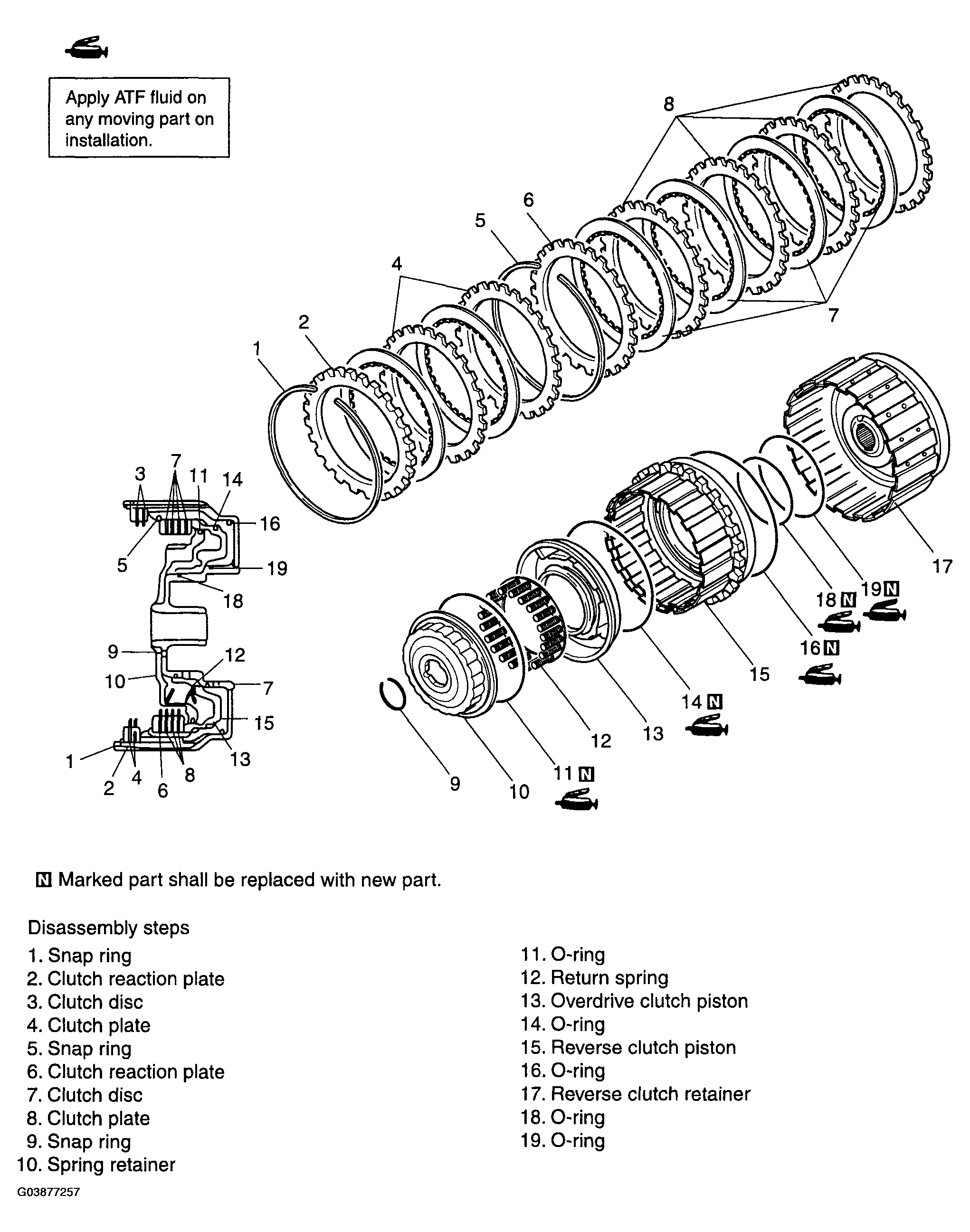

Fig 1: Exploded View Of Reverse And Overdrive Clutch Components
G03877257Courtesy of KIA MOTORS AMERICA, INC.
