Manual Transaxle Shift Control System: Components

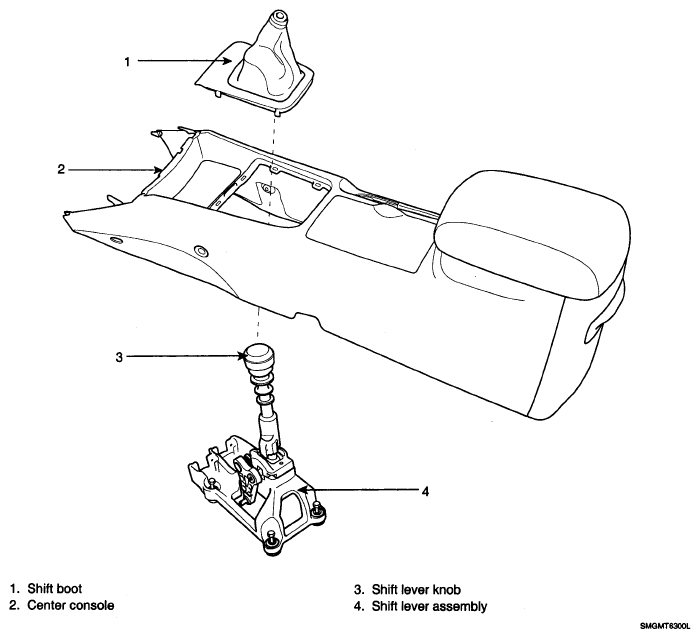

Fig 1: Identifying Manual Transaxle Shift Control Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
