Manual Transaxle: Components

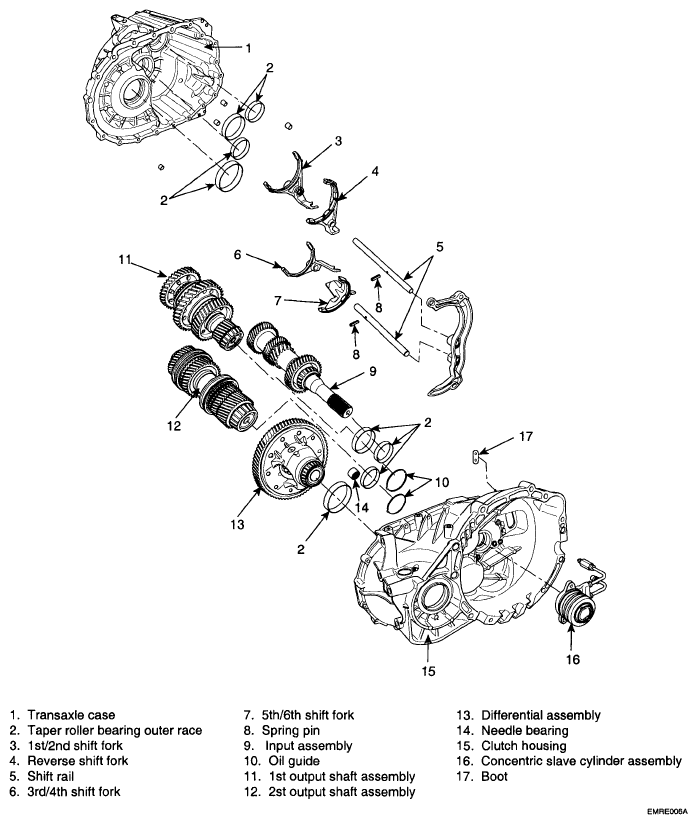

Fig 1: Exploded View Of Manual Transaxle Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
