Gasoline Engine Control System: Components

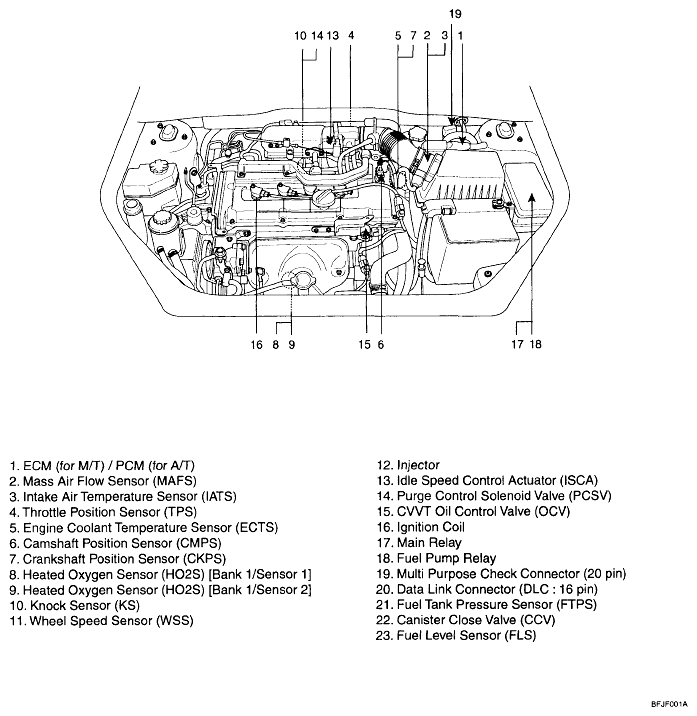

Fig 1: Identifying Comprehensive Components

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Sensor Location (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

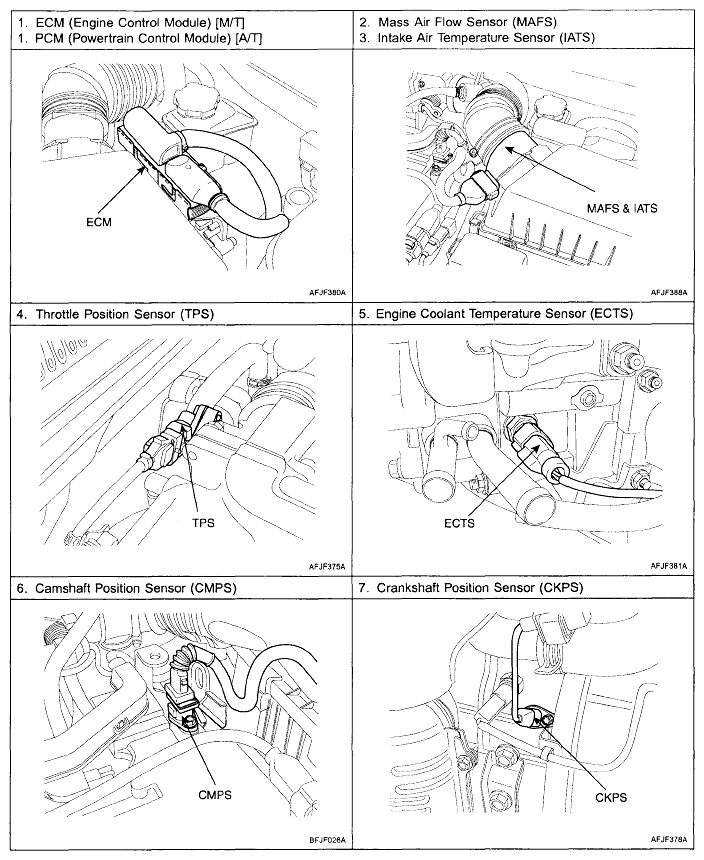

Fig 3: Identifying Sensor Location (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

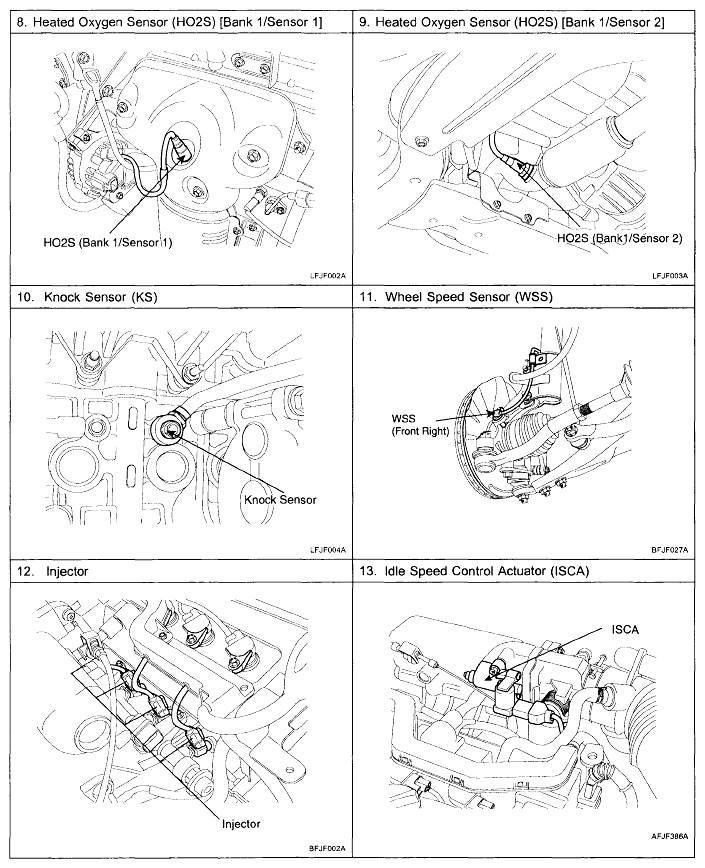

Fig 4: Identifying Sensor Location (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

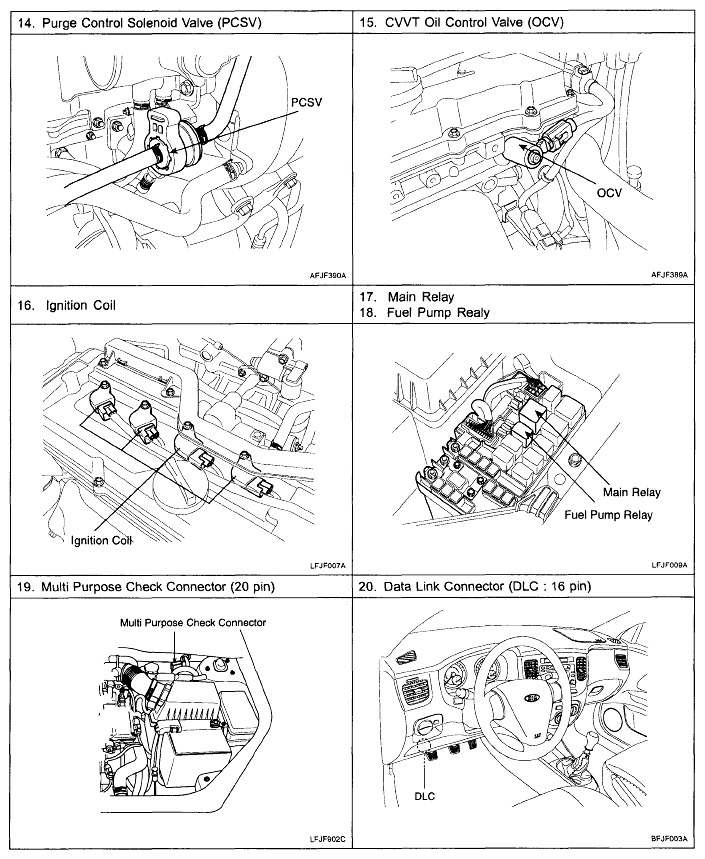

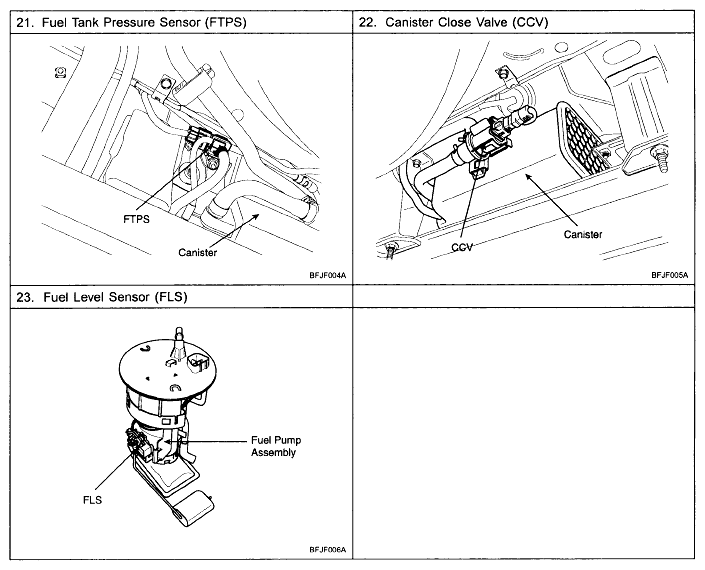

Fig 5: Identifying Sensor Location (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
