Resistance Measurement Between Terminals

  1. Disconnect the connector at the injector.
  2. Measure the resistance between terminals.

    Standard value: 13800-15200 at 20°C (68°F)

  3. Reconnect the connector to the injector.

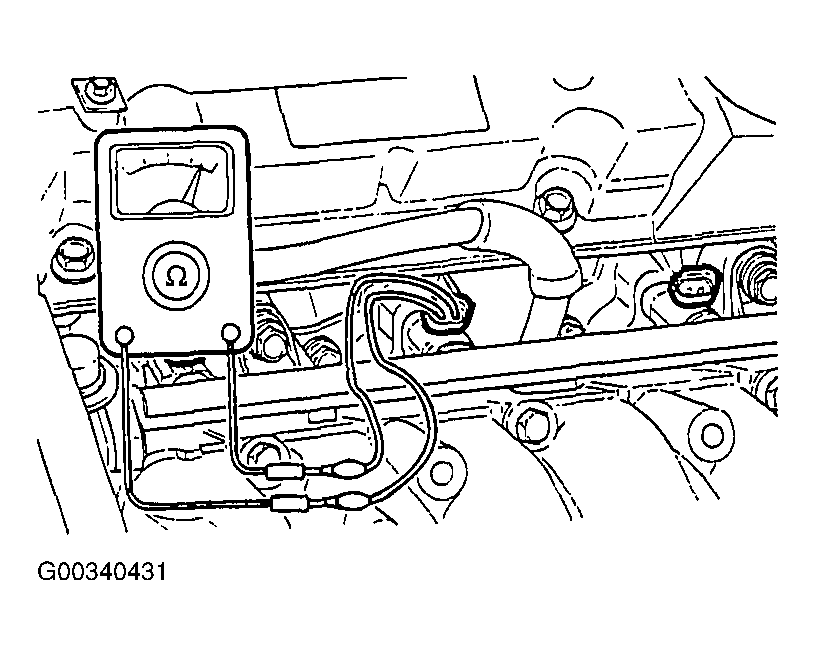

Fig 1: Measuring Injector Resistance
G00340431Courtesy of KIA MOTORS AMERICA, INC.
