Valve Body Fluid Pressure Circuit Diagrams
›
Notes
Valve Body Fluid Pressure Circuit Diagrams: Notes

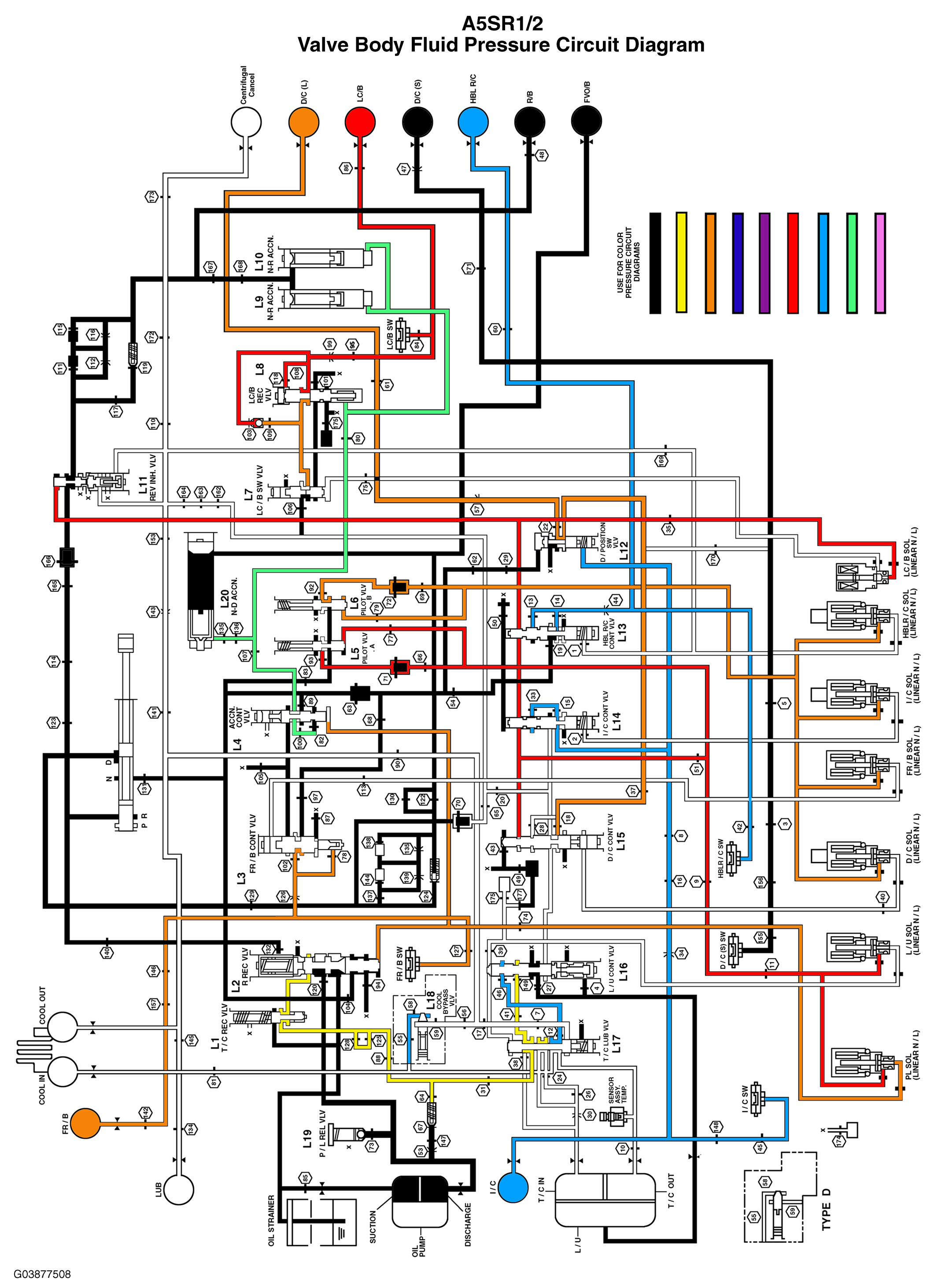

Fig 1: Valve Body Fluid Pressure Circuit Diagram - D Range
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
