Ecu Side Connector: A-Connector

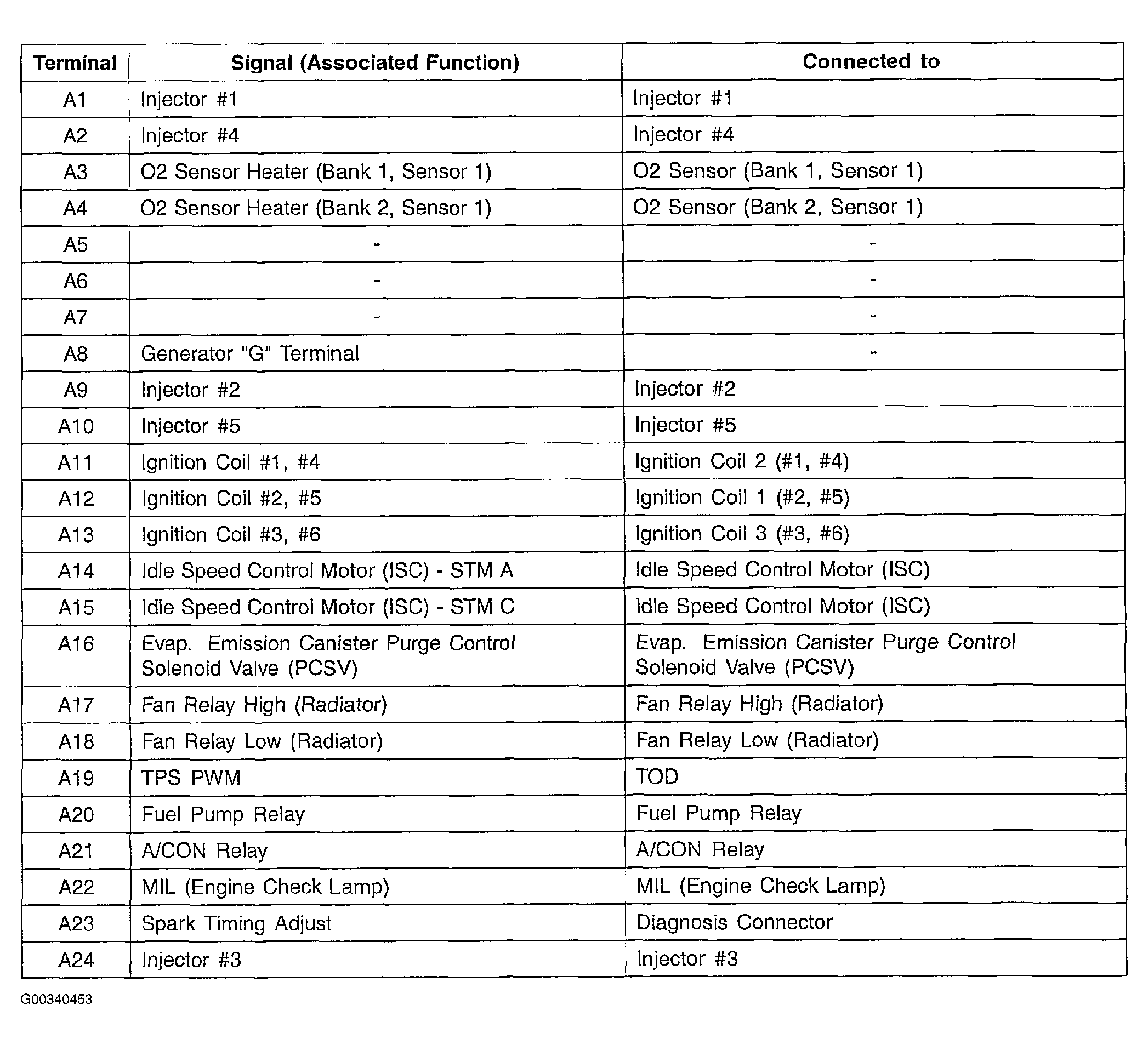

Fig 1: Identifying ECU A-Connector Terminal Identification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

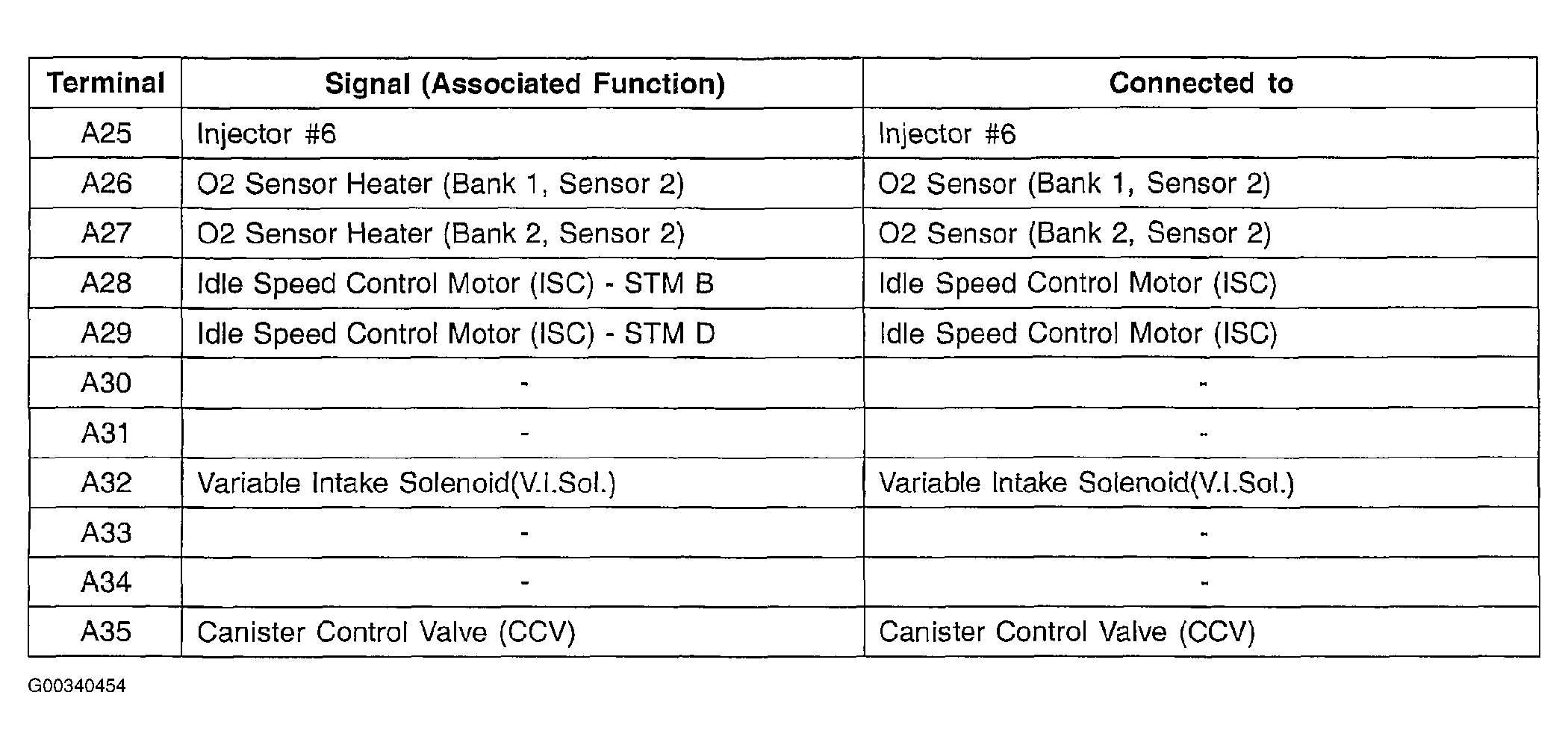

Fig 2: Identifying ECU A-Connector Terminal Identification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
