HECU Input/Output Diagram
›
Notes
HECU Input/Output Diagram: Notes

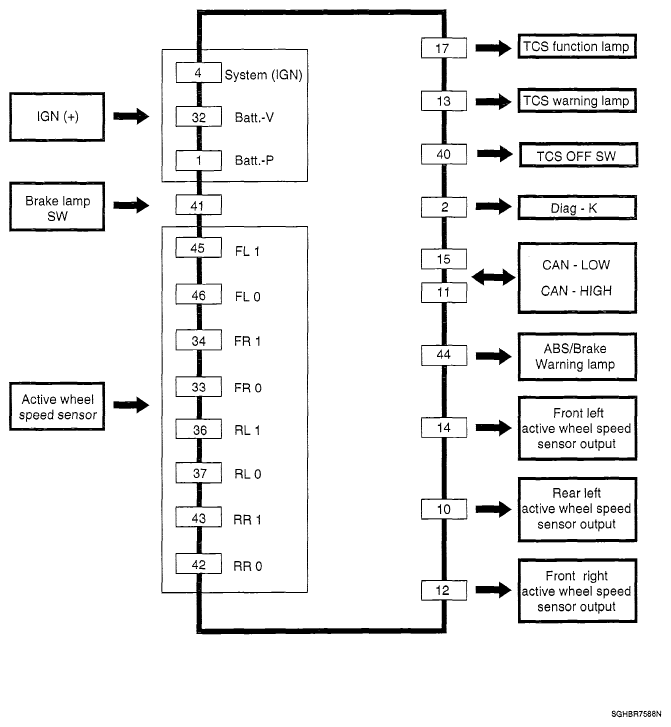

Fig 1: HECU Input/Output Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
