Home › Kia › 2007 › Amanti › Repair and Diagnosis › Brakes › Traction Control › ESC (Electronic Stability Control) › Steering Wheel Angle Speed Sensor › Components

Steering Wheel Angle Speed Sensor: Components

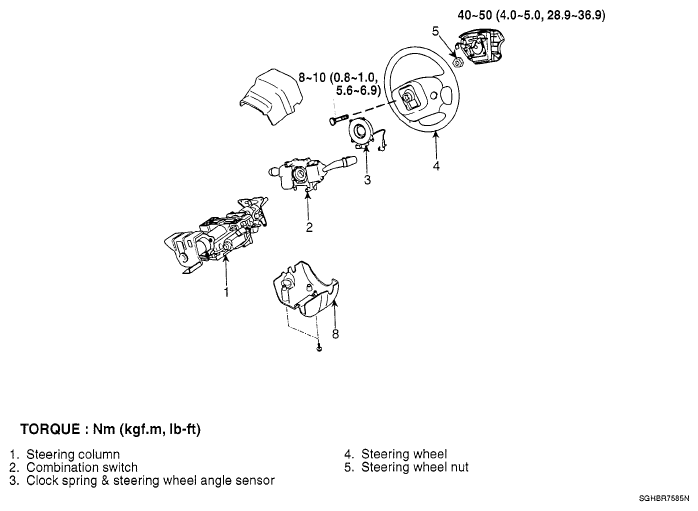

Fig 1: Exploded View Of Steering Wheel Angle Speed Sensor Components With Torque Specifications
G05117625Courtesy of KIA MOTORS AMERICA, INC.
