Charging System: Alternator: Components

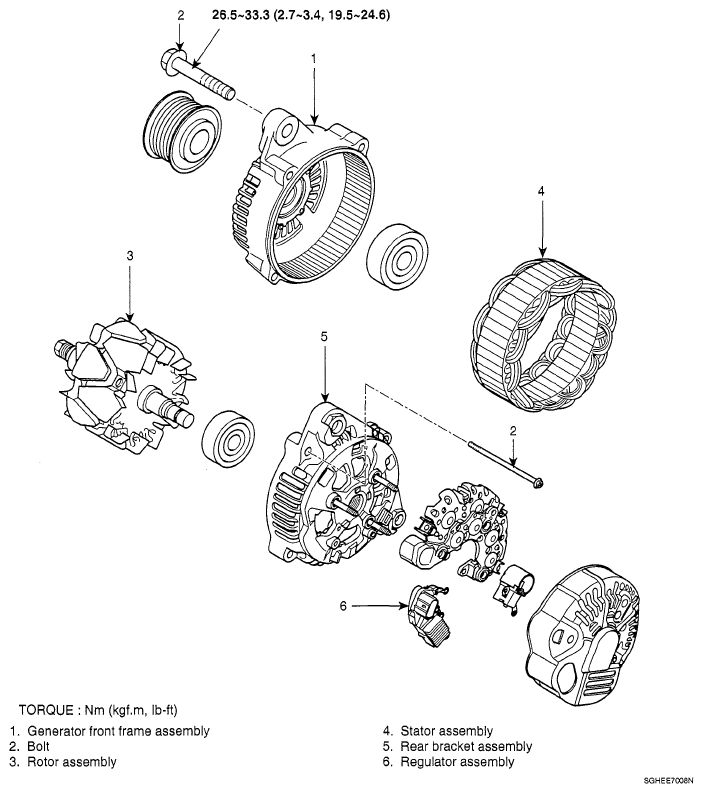

Fig 1: Alternator Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
