Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

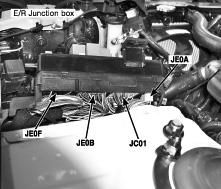

| E/R Junction Box | Left front of engine compartment. See Figure. |
| E/R Relay Box | Right side of engine compartment. |

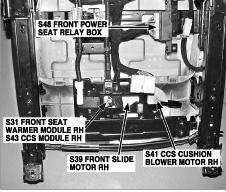

| Front Power Seat Relay Box | Under front passenger's seat. See Figure. |

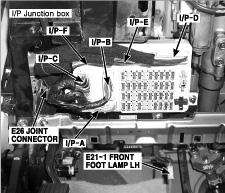

| I/P Junction Box | Under left side of dash. See Figure. |
| I/P Relay Box | Behind right end of dash. |
