CVVT Oil Temperature Sensor (OTS)
›
Schematic Diagram
Schematic Diagram

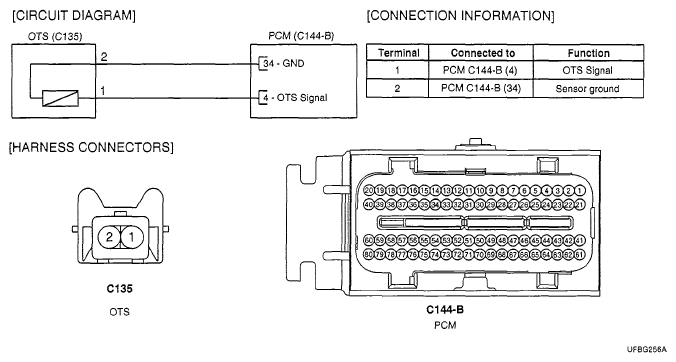

Fig 1: CVVT Oil Temperature Sensor (OTS) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
