Canister Close Valve (CCV)
›
Schematic Diagram
Schematic Diagram

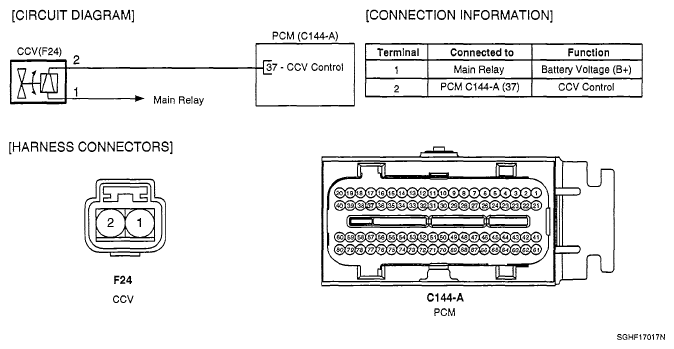

Fig 1: Canister Close Valve - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
