Kia
›
2007
›
Amanti
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Gasoline Engine Control System
›
Etc (Electronic Throttle Control) System
›
Schematic Diagram
Schematic Diagram

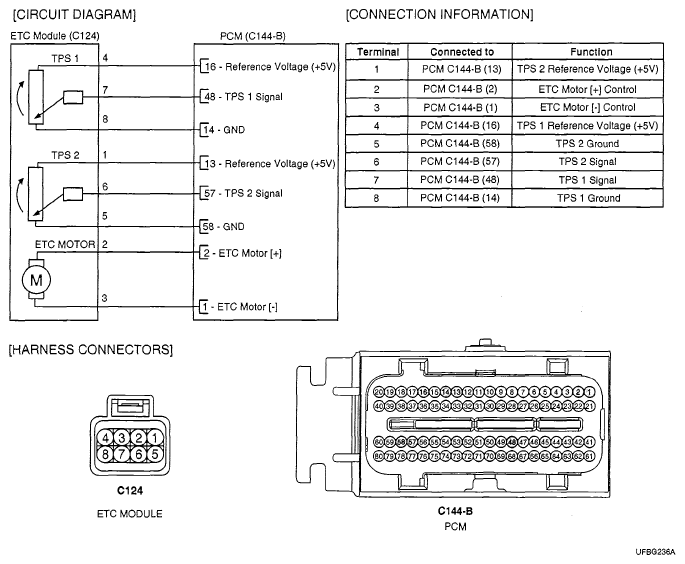

Fig 1: ETC Module - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
