Schematic Diagram
Schematic Diagram

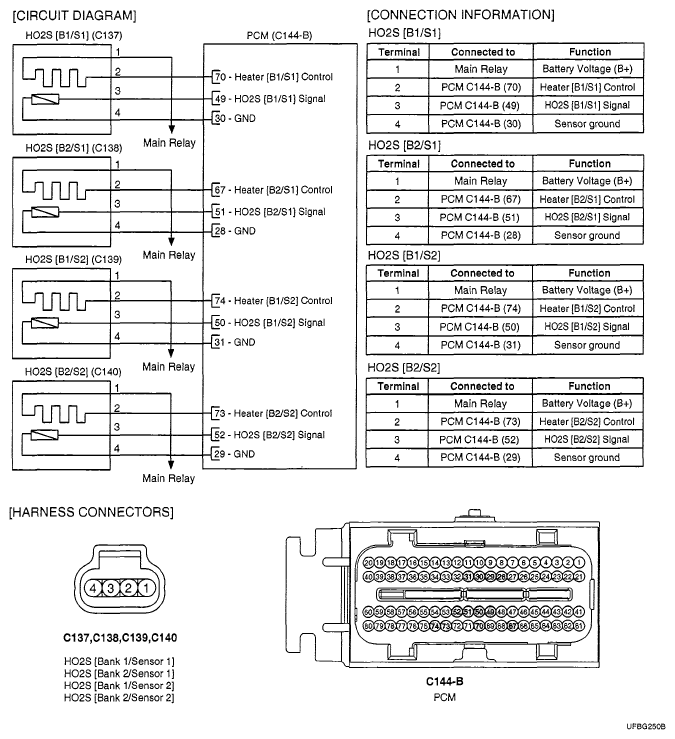

Fig 1: Heated Oxygen Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
