Auto Light Switch: Inspection

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.

Fig 1: Identifying Auto Light Switch Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.

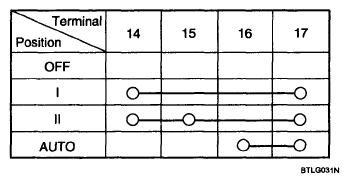

Fig 2: Auto Light Switch Connector Terminal Continuity Specifications Chart

Courtesy of KIA MOTORS AMERICA, INC.
