Abs (Anti-Lock Brake System): Components

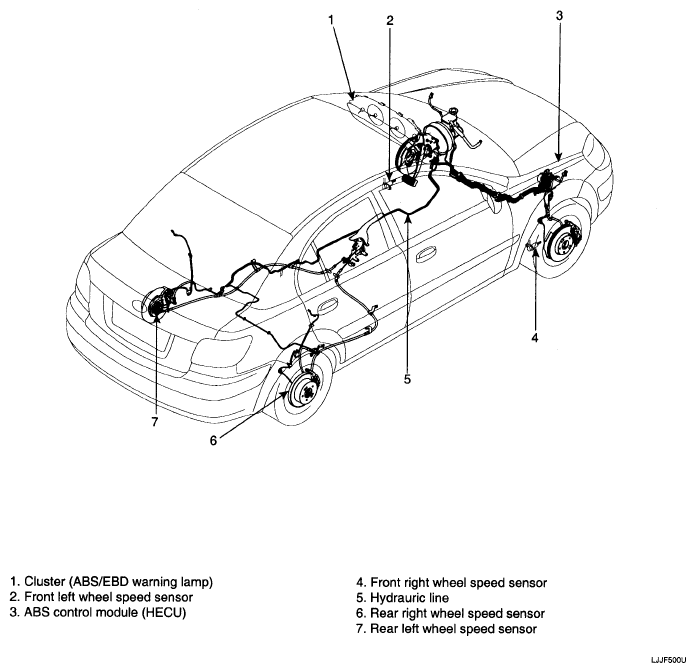

Fig 1: Identifying Anti-Lock Brake System Components Location
G04805882Courtesy of KIA MOTORS AMERICA, INC.
