Front Hub / Knuckle: Components

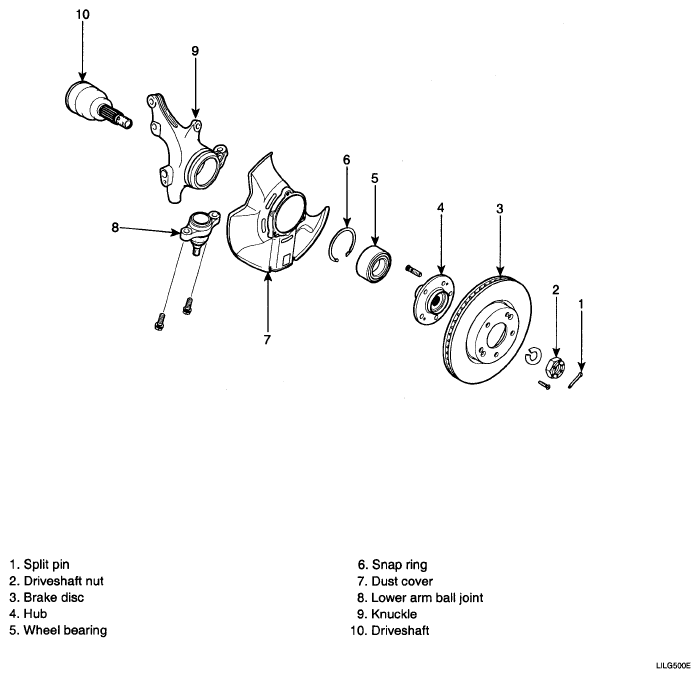

Fig 1: Identifying Front Hub / Knuckle Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
