Seat Position Sensor: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

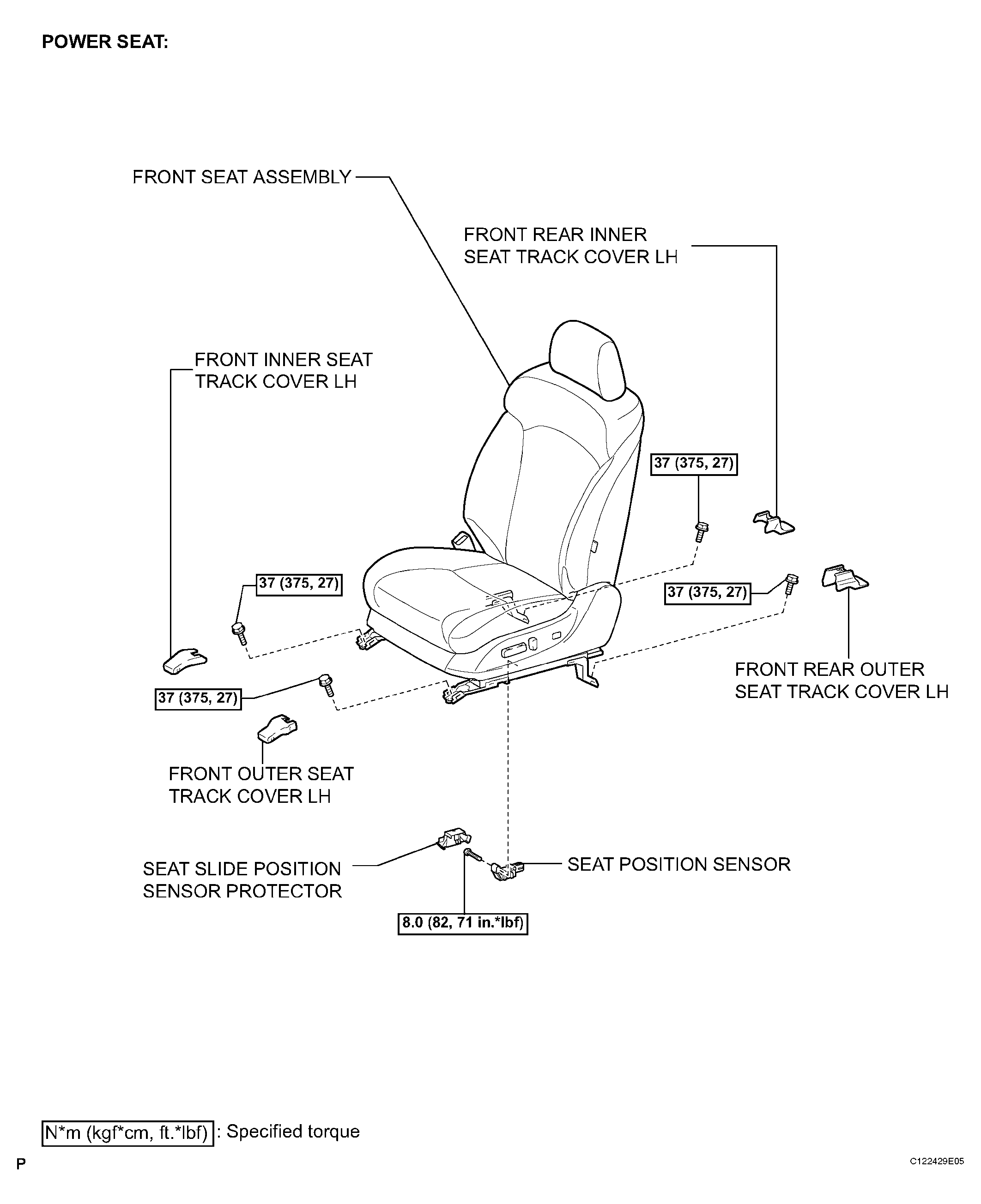

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (Power Seat)
G04048924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

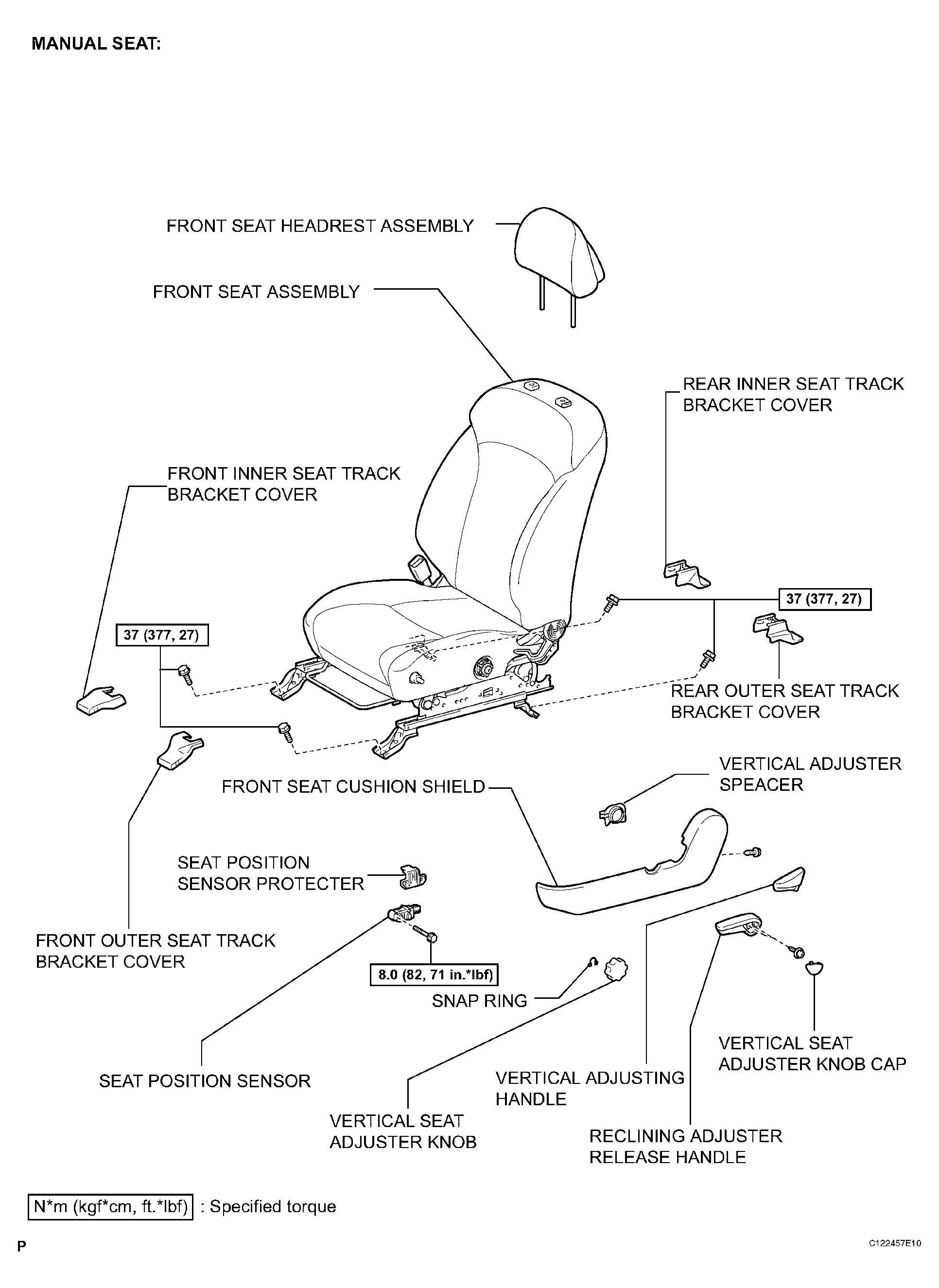

Fig 2: Seat Position Sensor Replacement Components With Torque Specifications (Manual Seat)
G04048925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
