Fog Light Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FOG LIGHT ASSEMBLY
1. Install the fog light assembly with the bolt and 3 pins.

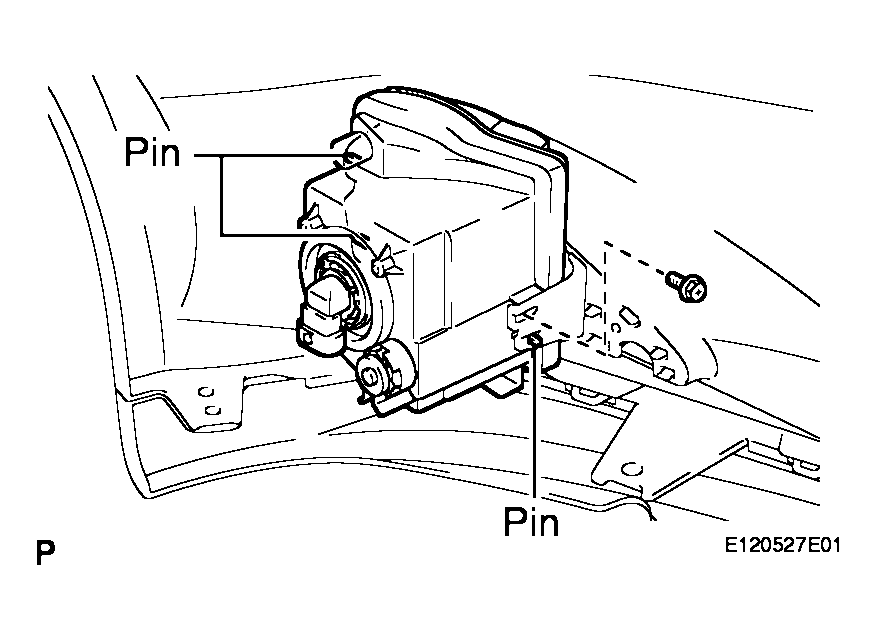

  Fig 1: Identifying Fog Light Assembly With Bolt And Pins
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Install the clamp.
INSTALL FRONT BUMPER ASSEMBLY
INSTALL COOL AIR INTAKE DUCT SEAL
VEHICLE PREPARATION FOR FOG LIGHT AIM (See REMOVAL )
PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
FOG LIGHT AIMING INSPECTION (See ADJUSTMENT )
FOG LIGHT AIMING ADJUSTMENT (See ADJUSTMENT )

Fig 2: Identifying Clamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
