WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

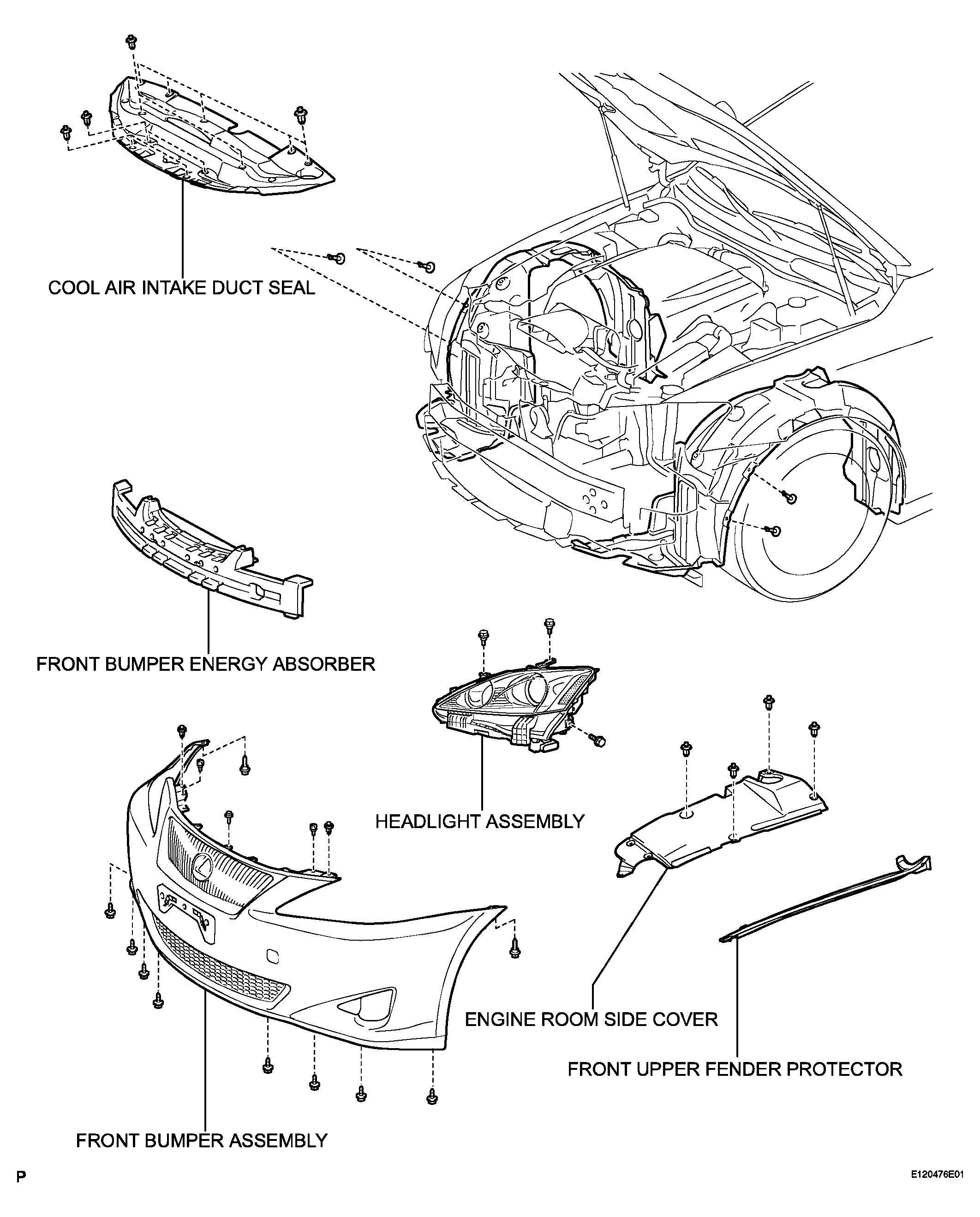

Fig 1: Exploded View Of Headlight Components (1 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

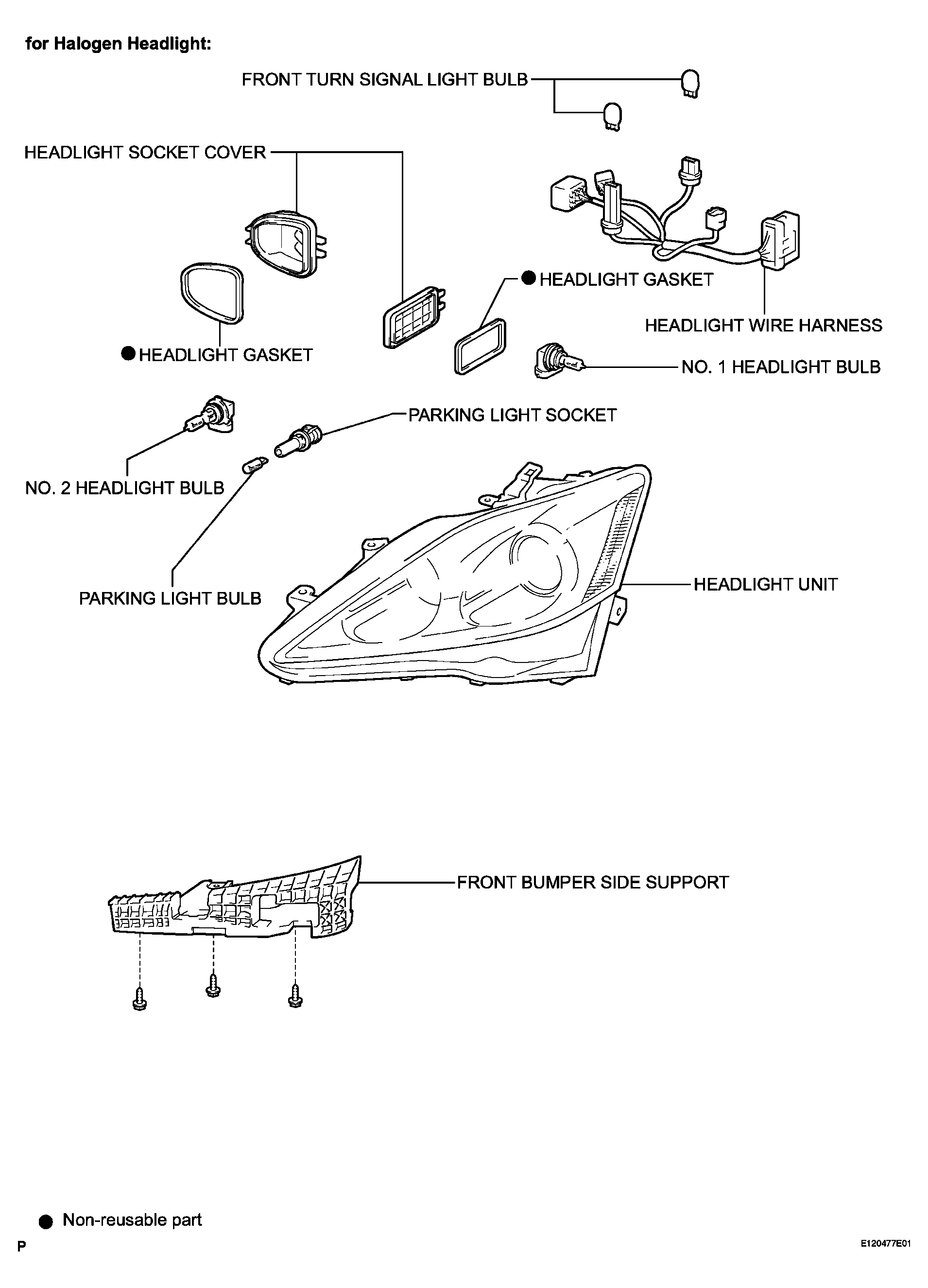

Fig 2: Exploded View Of Headlight Components (2 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

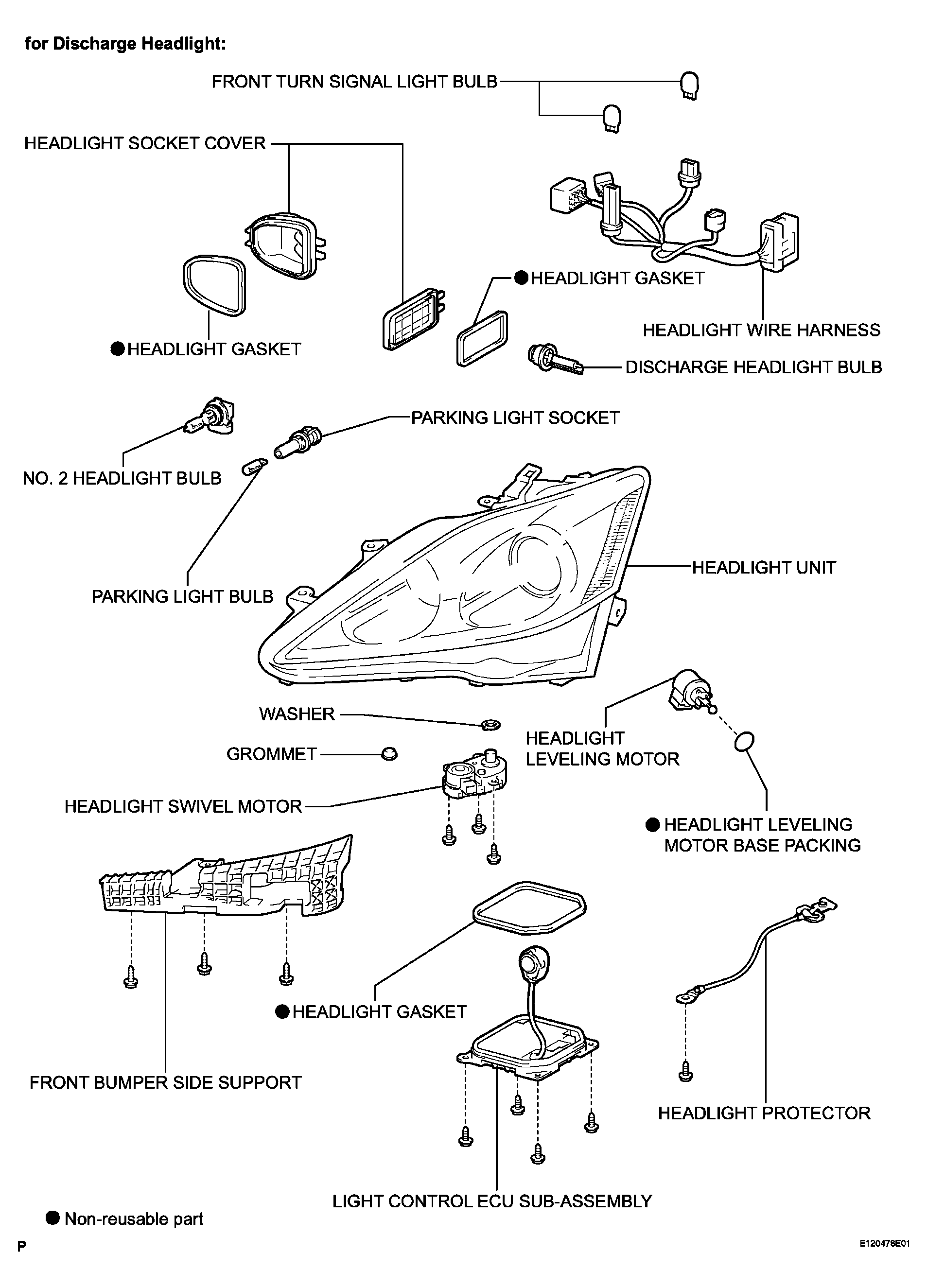

Fig 3: Exploded View Of Headlight Components (3 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

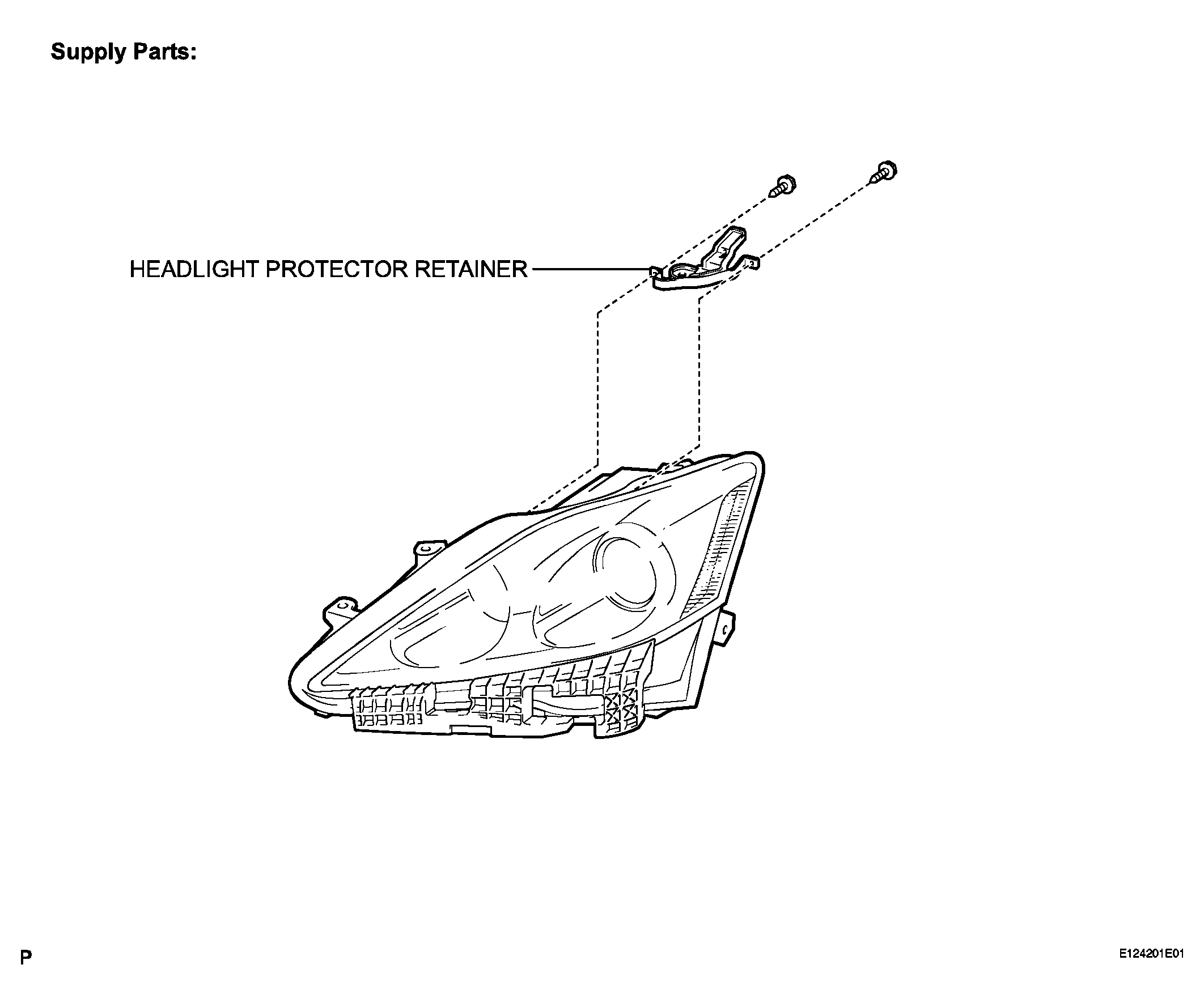

Fig 4: Exploded View Of Headlight Components (4 Of 4)
