Headlight Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT ASSEMBLY
    1. Install the headlight assembly with the headlight bracket pin.
    2. Install the 3 bolts.
    3. Connect the connector.

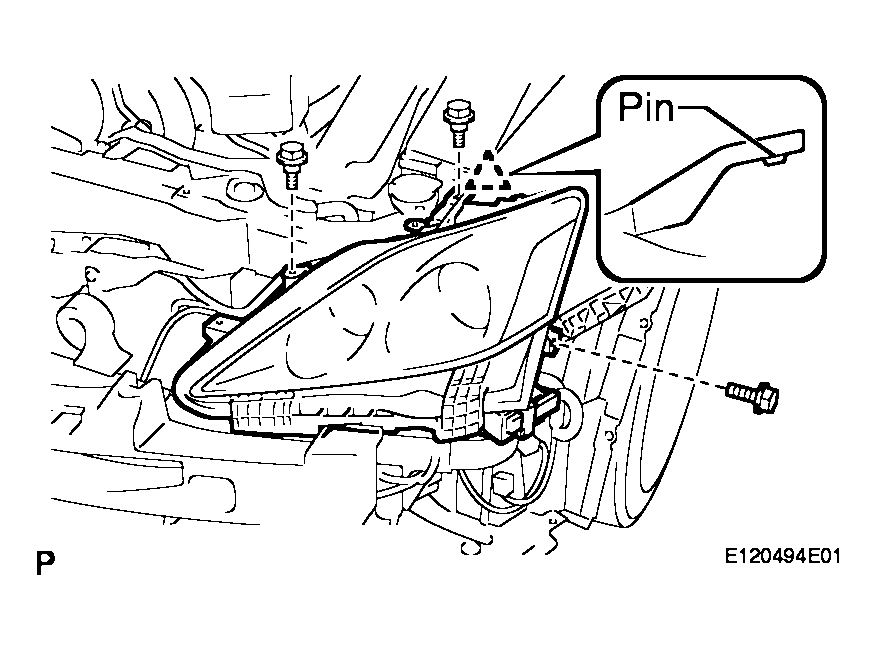

    Fig 1: Identifying Bolts
    G04049519Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL FRONT UPPER FENDER PROTECTOR
    1. Install the front upper fender protector with the 2 claws and 3 clips.

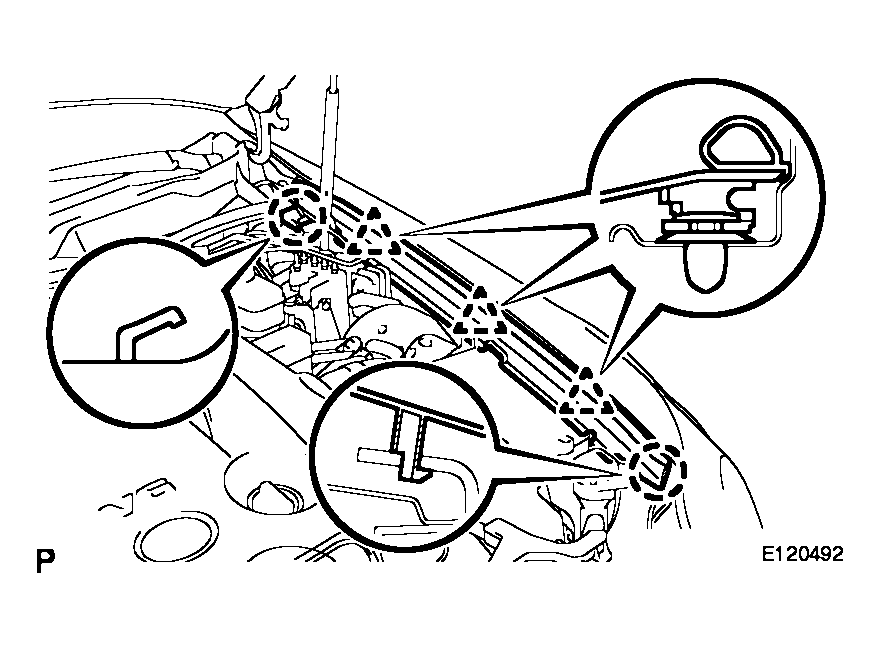

    Fig 2: Identifying Front Upper Fender Protector With Claws And Clips
    G04049520Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. INSTALL ENGINE ROOM SIDE COVER
    1. Install the engine room side cover with the nut.
    2. Install the 4 clips.
  4. INSTALL FRONT BUMPER ENERGY ABSORBER
  5. INSTALL FRONT BUMPER ASSEMBLY
  6. INSTALL COOL AIR INTAKE DUCT SEAL
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Discharge Headlight)
  8. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See  ADJUSTMENT   )
  9. PREPARATION FOR HEADLIGHT AIMING (Using a tester) (See  ADJUSTMENT   )
  10. PREPARATION FOR HEADLIGHT AIMING (Using a screen) (See  ADJUSTMENT   )
  11. HEADLIGHT AIMING INSPECTION (See  ADJUSTMENT   )
  12. HEADLIGHT AIMING ADJUSTMENT (See  ADJUSTMENT   )
  13. PERFORM INITIALIZATION (for Discharge Headlight)

    Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).

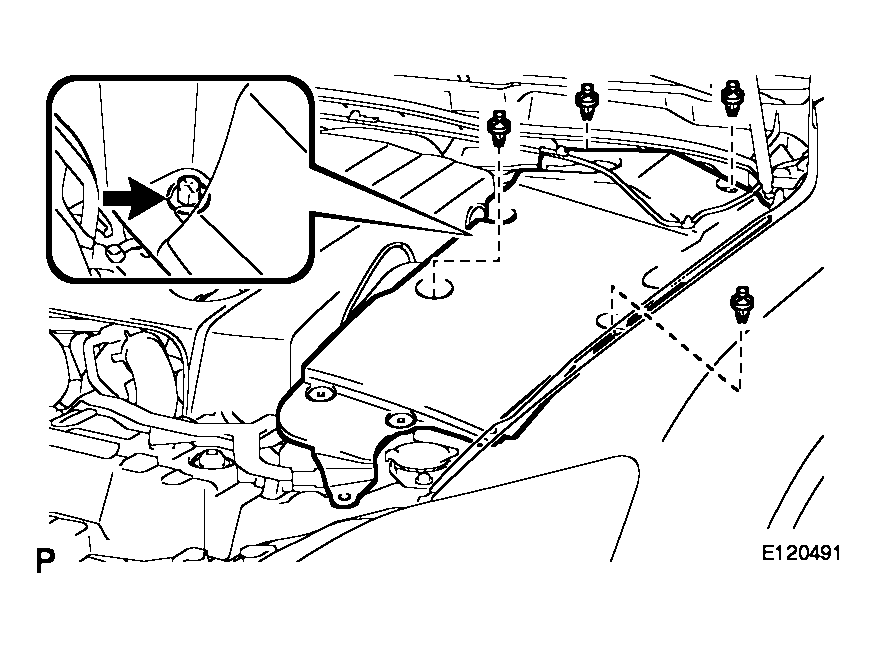

    Fig 3: Identifying Engine Room Side Cover With Nut
    G04049521Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
