Height Control Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. When replacing the rear height control sensor subassembly:
      1. Align matchmarks and also the trace of the nut, and install the rear height control sensor sub-assembly and bracket.
    2. When reusing the rear height control sensor subassembly:
      1. Align matchmarks on the rear height control sensor sub-assembly and bracket.
    3. Install the rear height control sensor sub-assembly with the 2 bolts and nut.

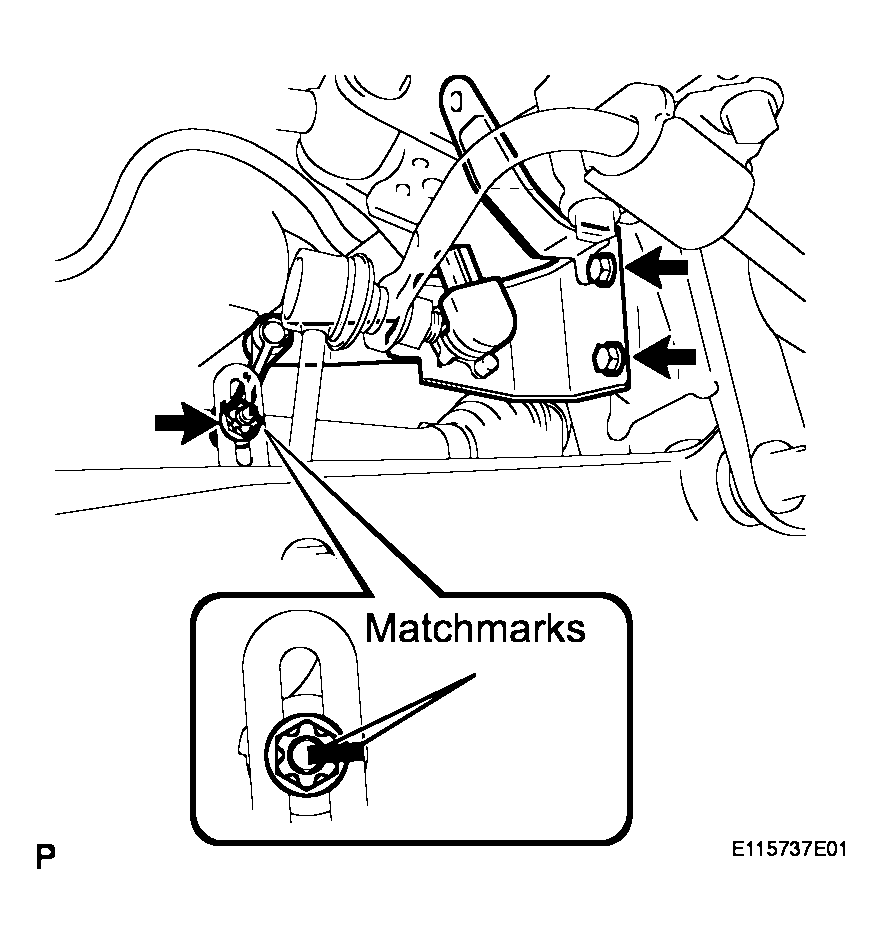

      Fig 1: Aligning Matchmarks On Rear Height Control Sensor Sub-Assembly & Bracket
      G04049654Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      Torque: Bolt

      14 N*m (143 kgf*cm, 10 ft.*lbf)

      Nut

      5.4 N*m (55 kgf*cm, 48 in.*lbf)

    4. Install the clamp.
    5. Connect the connector.

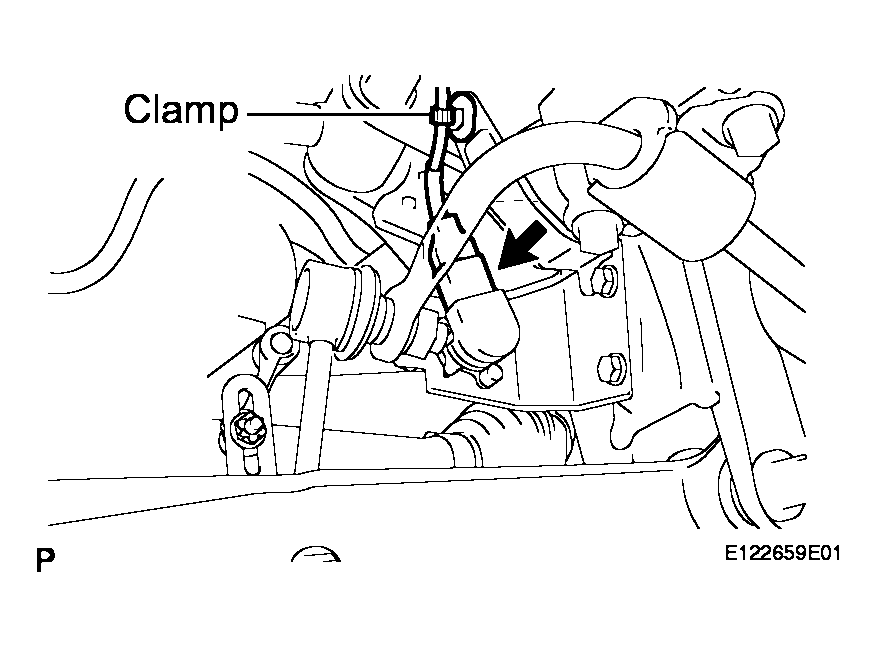

      Fig 2: Identifying Clamp
      G04049655Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. REMOVE FRONT HEIGHT CONTROL SENSOR SUBASSEMBLY (for 4WD)
    1. Install the 2 bolts.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      Fig 3: Identifying Bolts
      G04049656Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Install the front height control sensor sub-assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the connector.

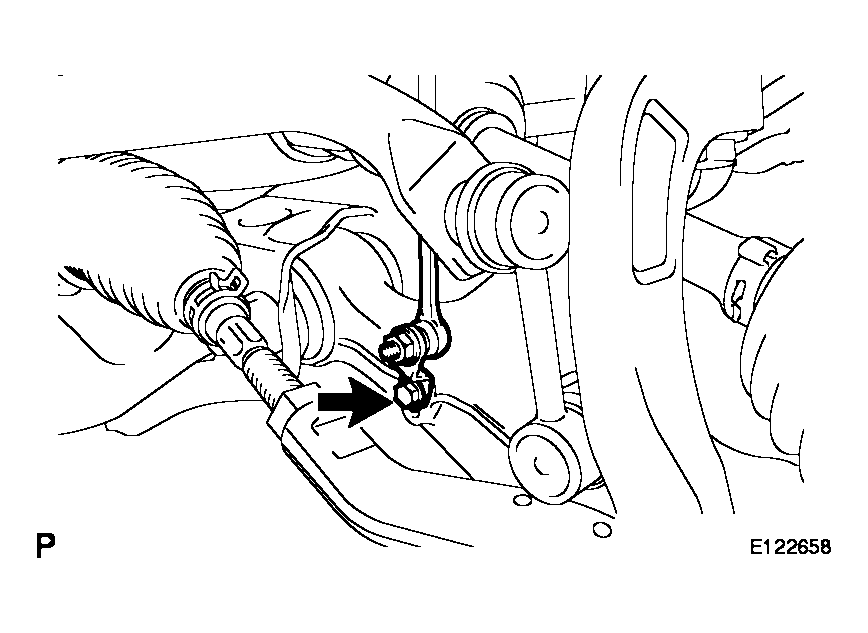

      Fig 4: Identifying Front Height Control Sensor Sub-Assembly With Bolt
      G04049657Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. INSTALL FRONT HEIGHT CONTROL SENSOR SUBASSEMBLY (for 2WD)
    1. Install the 2 bolts.

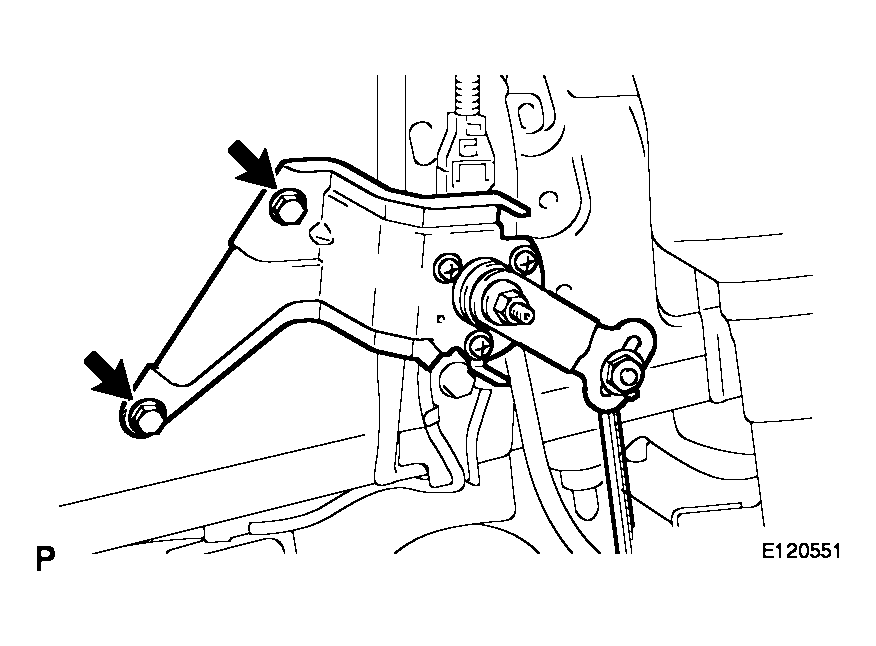

      Fig 5: Identifying Bolts
      G04049658Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

    2. Install the front height control sensor sub-assembly with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the connector.
  4. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See  ADJUSTMENT   )
  5. PREPARATION FOR HEADLIGHT AIMING (Using a tester) (See Step 2 in  ADJUSTMENT   )
  6. PREPARATION FOR HEADLIGHT AIMING (Using a screen) (See Step 3 in  ADJUSTMENT   )
  7. HEADLIGHT AIMING INSPECTION (See Step 4 in  ADJUSTMENT   )
  8. HEADLIGHT AIMING ADJUSTMENT (See Step 5 in  ADJUSTMENT   )

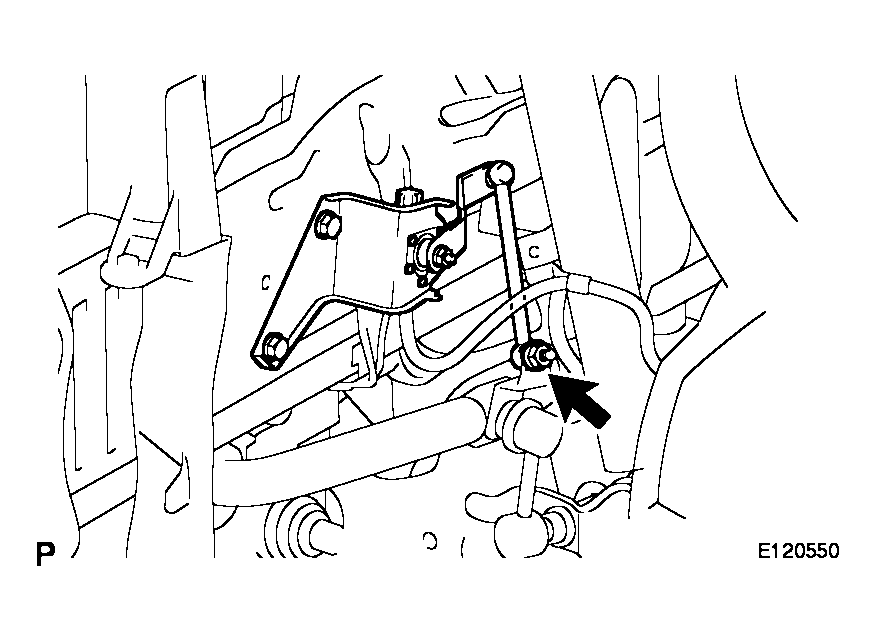

Fig 6: Identifying Front Height Control Sensor Sub-Assembly With Nut
G04049659Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
