Height Control Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY (for 2WD)
1. Disconnect the connector.

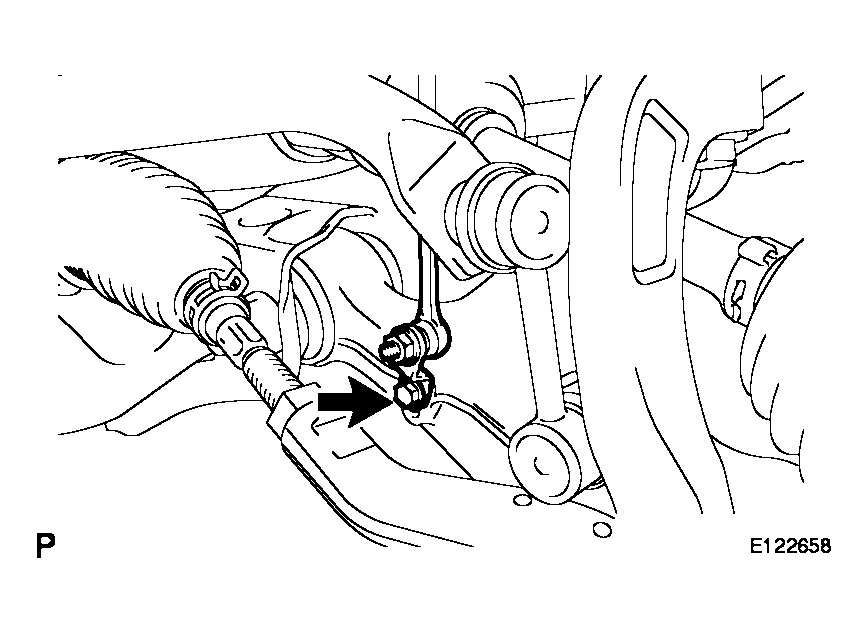

2. Remove the nut.

  Fig 1: Identifying Nut
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Remove the 2 bolts and front height control sensor sub-assembly.

  Fig 2: Identifying Bolts & Front Height Control Sensor Sub-Assembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY (for 4WD)
1. Disconnect the connector.

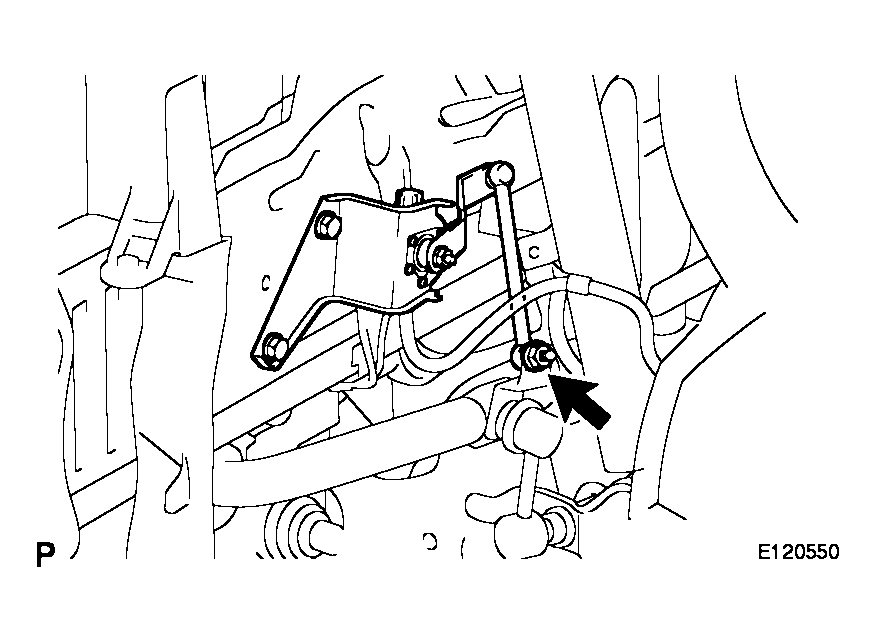

2. Remove the bolt.

  Fig 3: Identifying Bolt
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

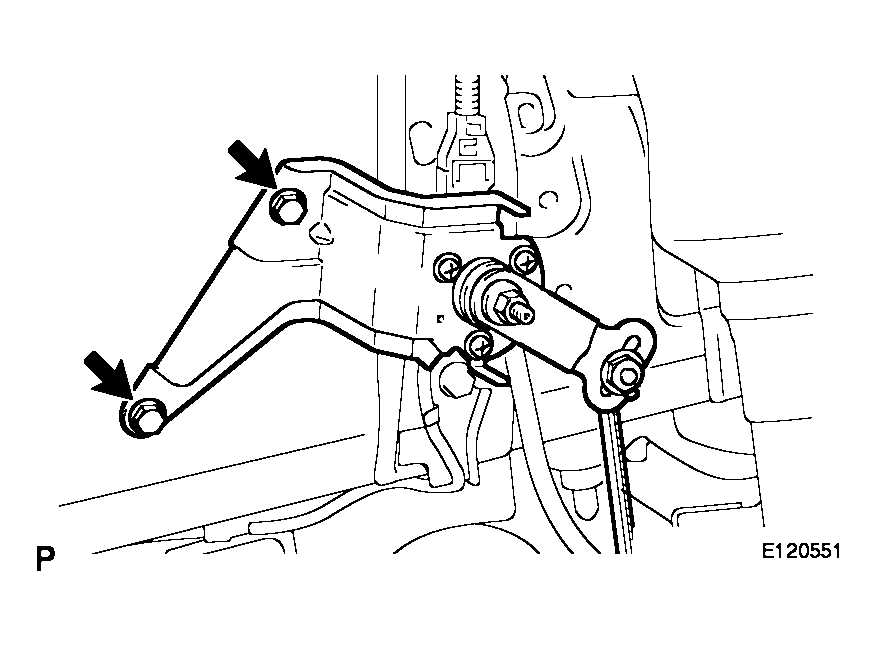

3. Remove the 2 bolts and front height control sensor sub-assembly.
Fig 4: Identifying Bolts And Front Height Control Sensor Sub-Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE REAR HEIGHT CONTROL SENSOR SUBASSEMBLY

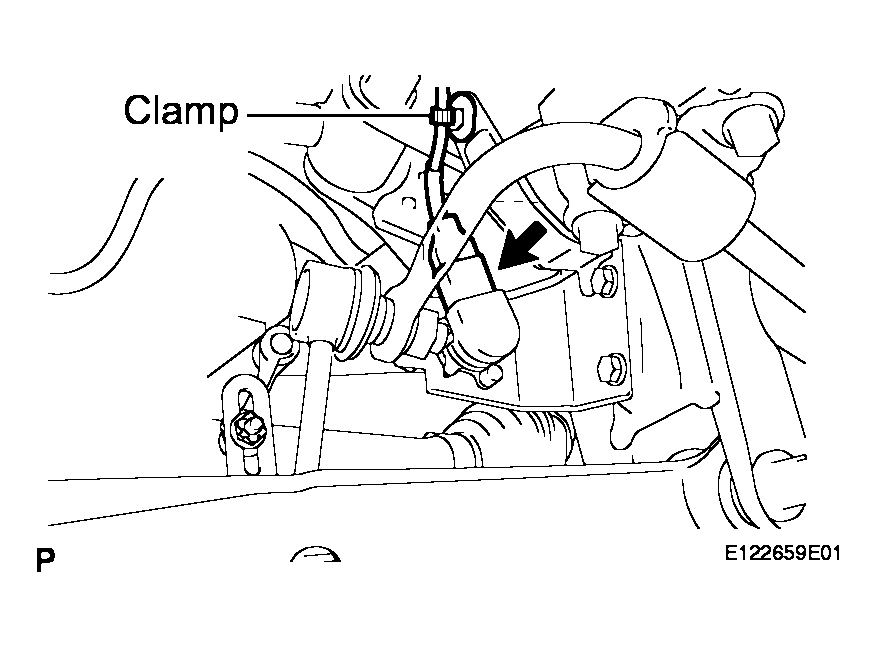

1. Disengage the clamp and disconnect the connector.

  Fig 5: Identifying Clamp And Disconnect Connector
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

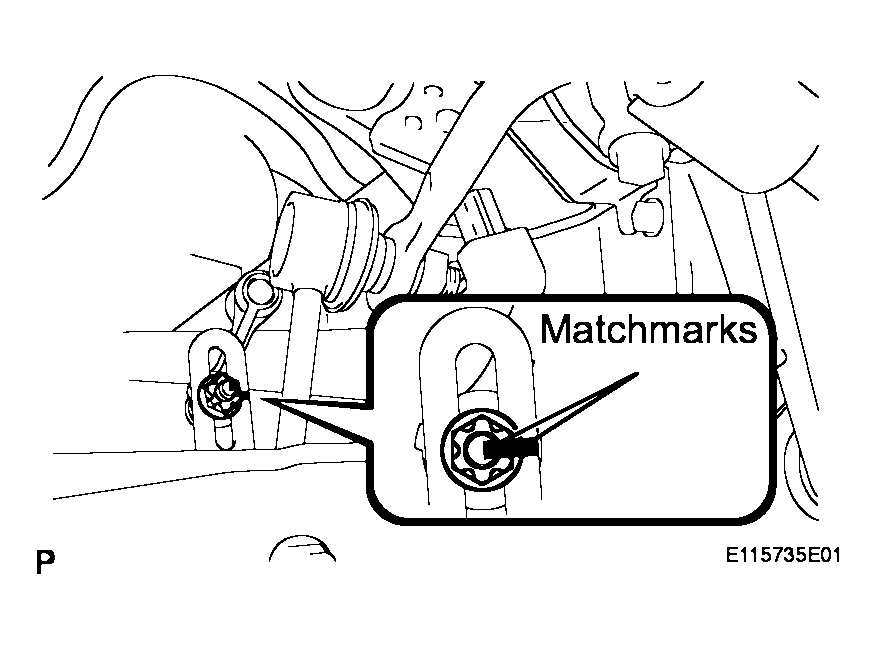

2. Put matchmarks on the rear height control sensor link and bracket.

  Fig 6: Putting Matchmarks On Rear Height Control Sensor Link And Bracket
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

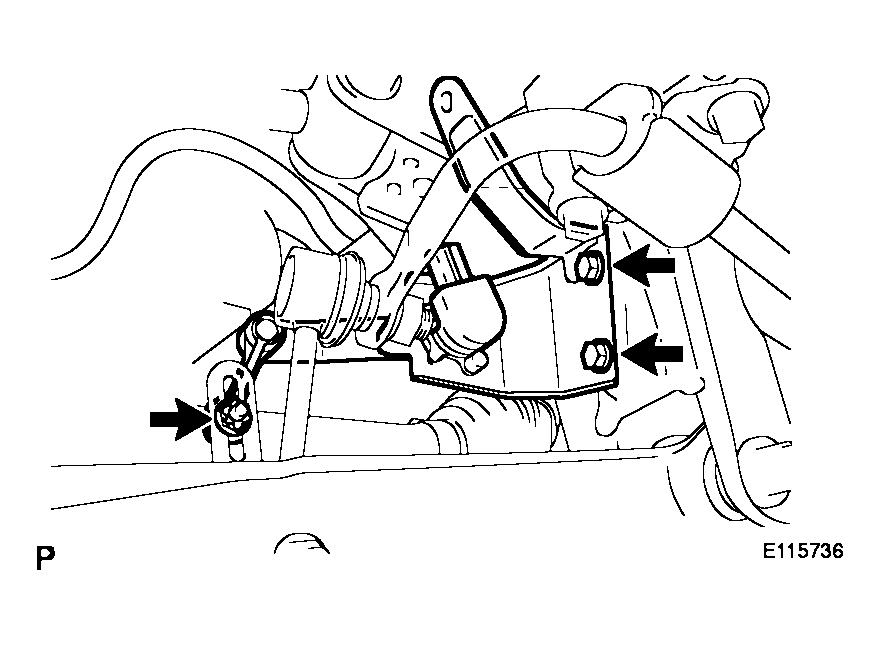

3. Remove the 2 bolts, nut and rear height control sensor sub-assembly.
Fig 7: Identifying Bolts, Nut & Rear Height Control Sensor Sub-Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
