System Diagram

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

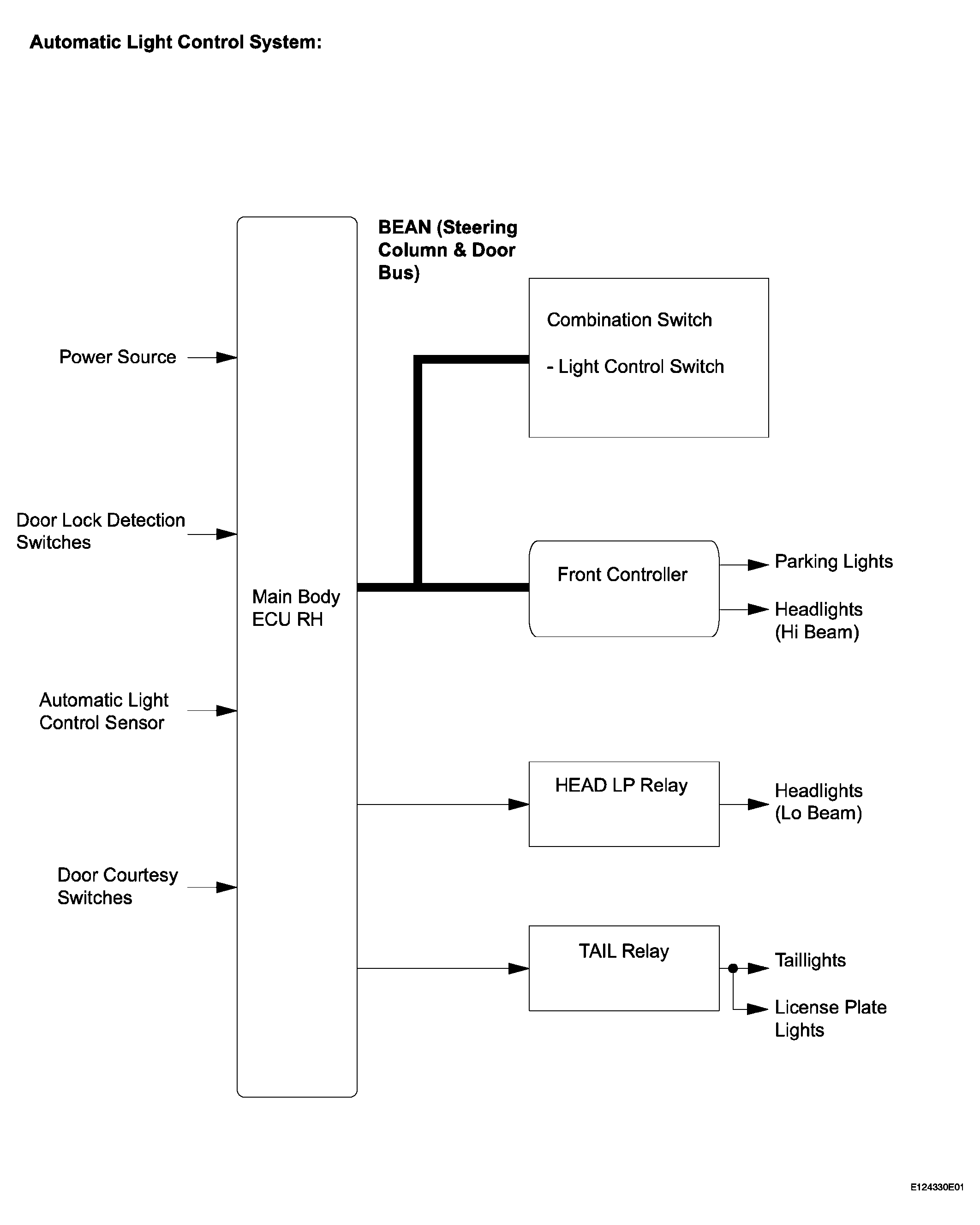

Fig 1: System Diagram - Automatic Light Control System

G04049326

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

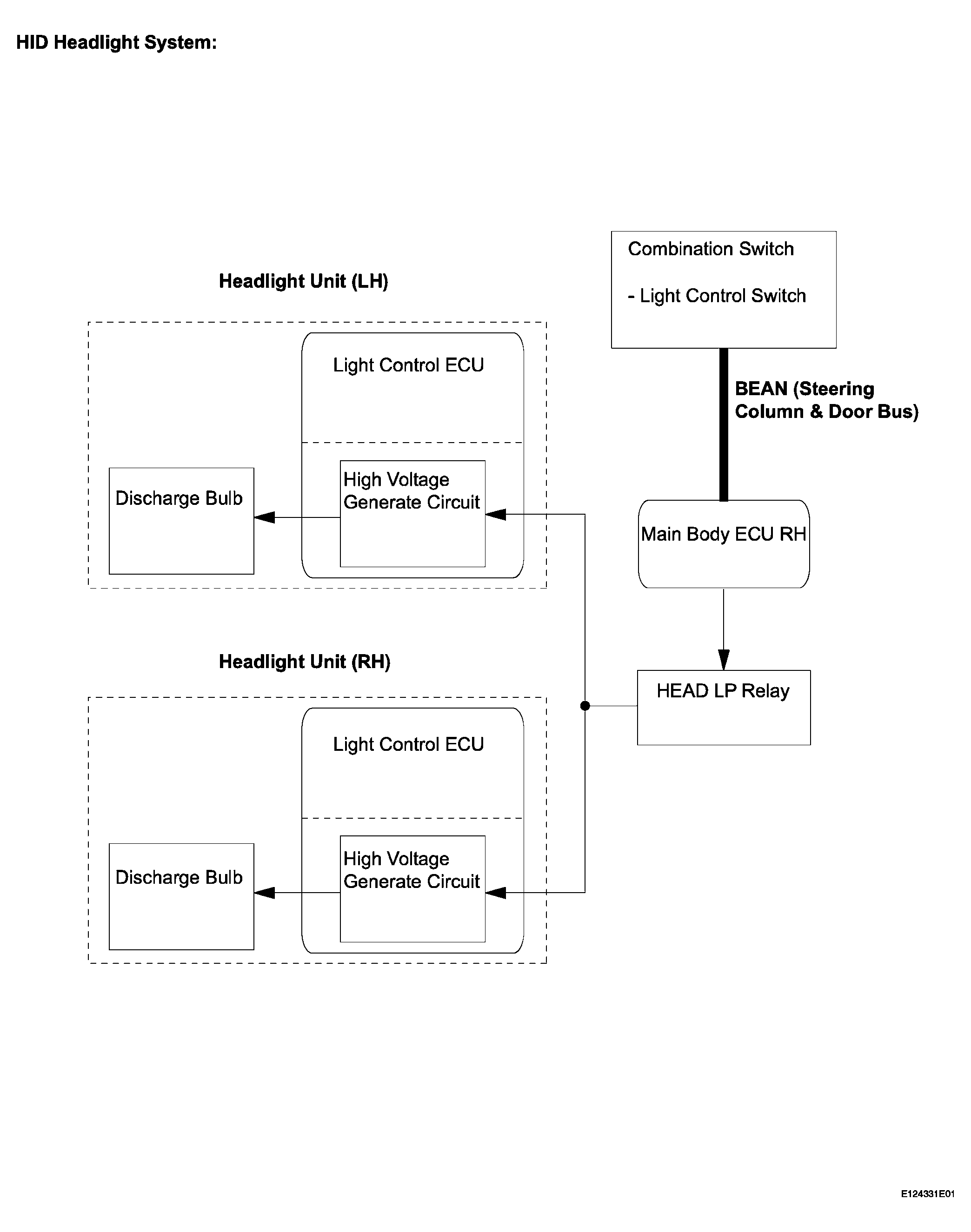

Fig 2: System Diagram - HID Headlight System

G04049327

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

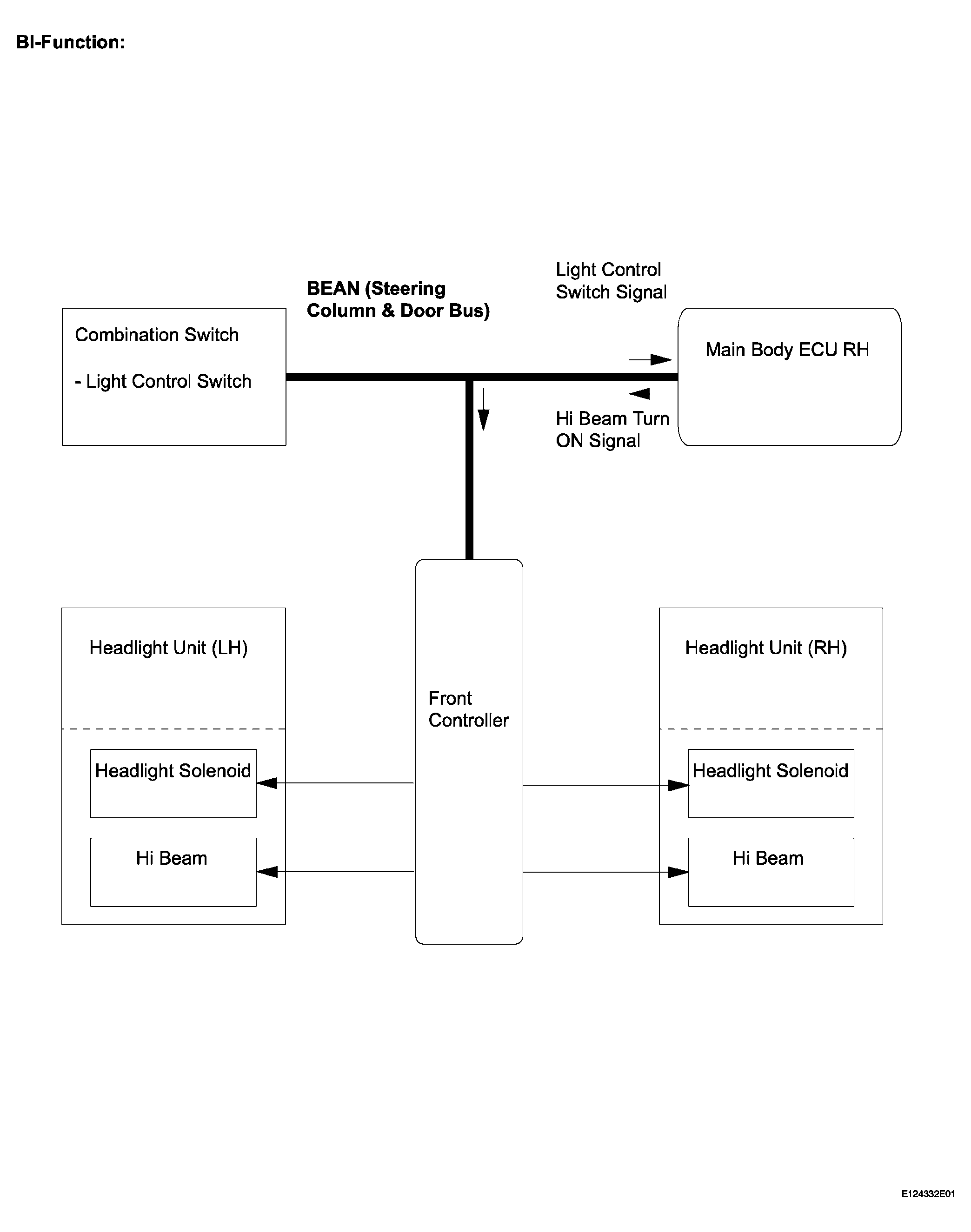

Fig 3: System Diagram - BI-FUNCTION

G04049328

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

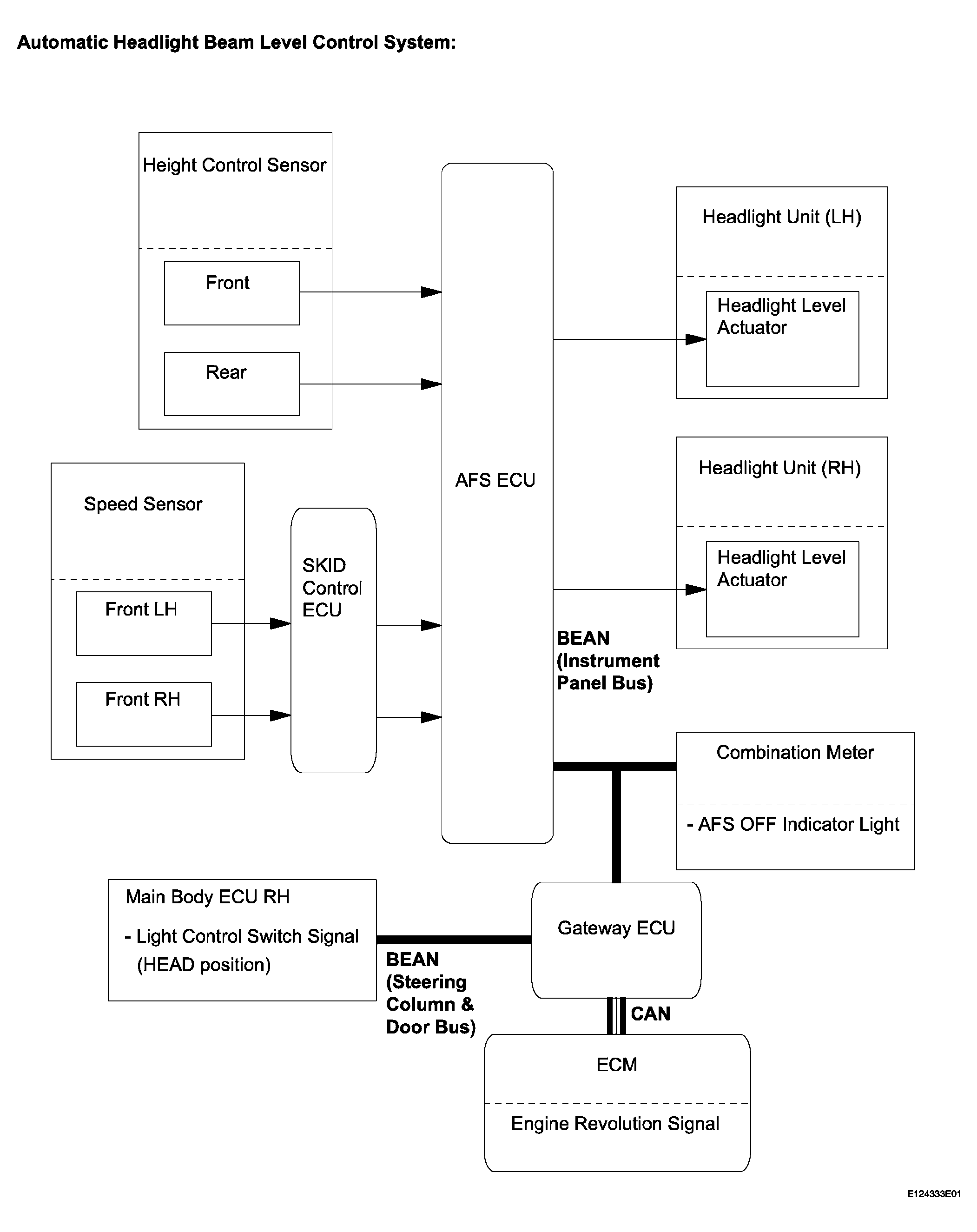

Fig 4: System Diagram - Automatic Headlight Beam Level Control System

G04049329

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

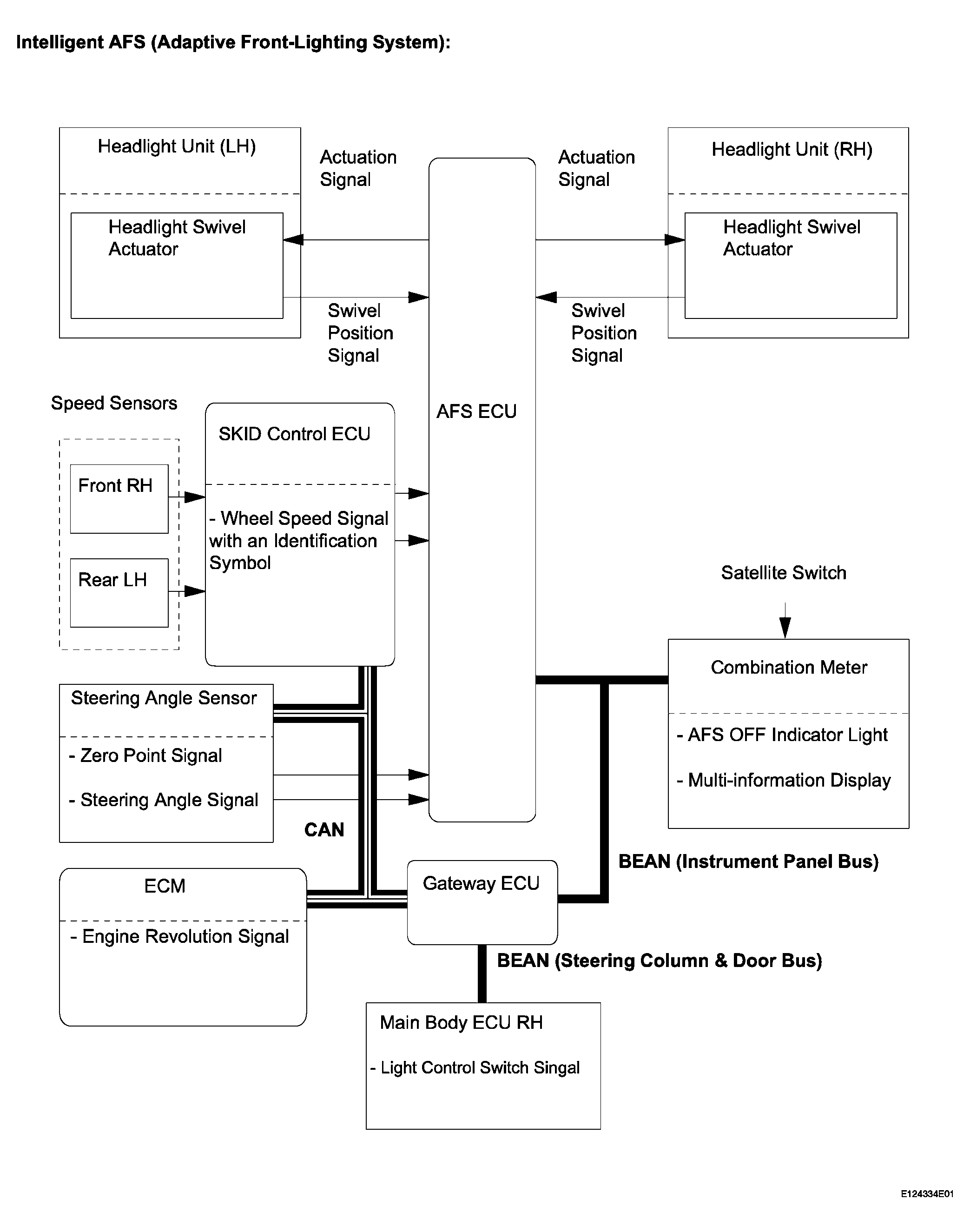

Fig 5: System Diagram - Intelligent AFS

G04049330

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

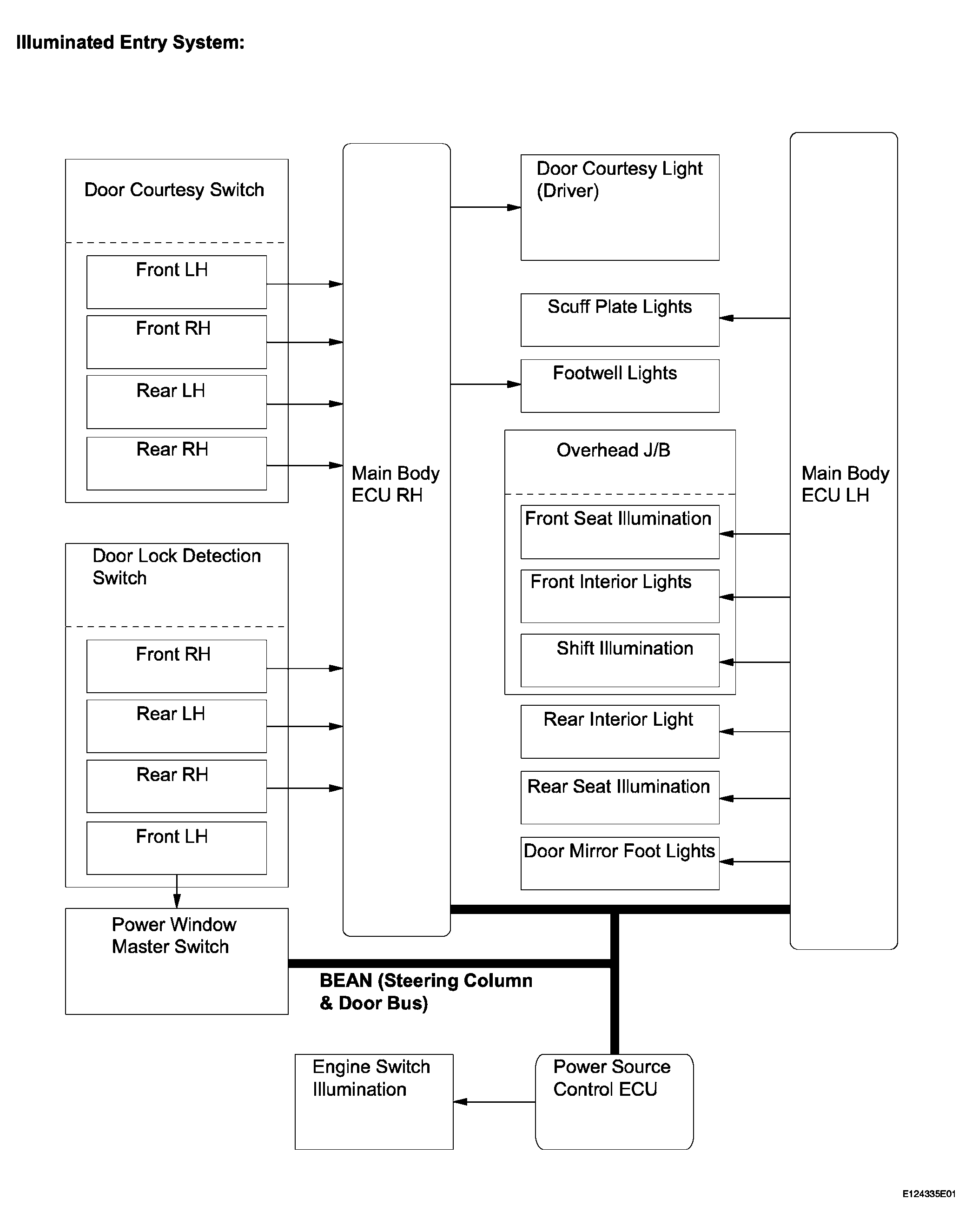

Fig 6: System Diagram - Illuminated Entry System

G04049331

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Various switches or sensors are represented as being inputs for the different systems mentioned in the information. Where direct electrical connections do not exist between components, signals may be carried across the different networks (BEAN, CAN) that exist on the vehicle. If a signal needs to travel from the CAN network to the BEAN network, the Gateway ECU allows the signal to travel between these different networks. Some of these different signals can be confirmed or inspected using the Intelligent Tester.
