FixVault
Home
›
Kia
›
2007
›
Magentis 2.7 4
›
Repair and Diagnosis
›
Accessories & Equipment
›
Steering Column Switches
›
Multi Function Switch
›
Specifications
›
Components
Multi Function Switch: Specifications: Components

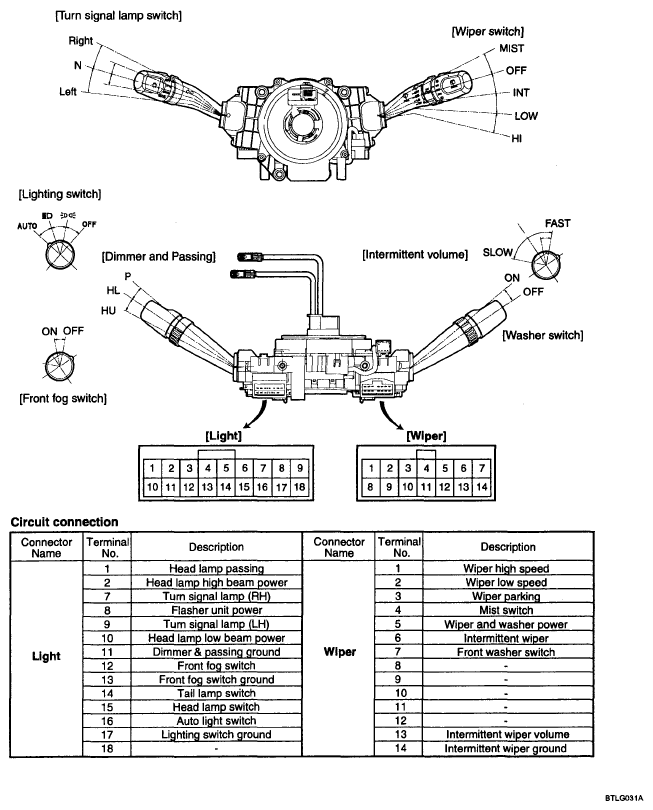

Fig 1: Identifying Multi Function Switch Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
