Service Action: 2006.5MY Optima (Mg) 2.4L Calibration Verification Number/Powertrain Control Module Reprogram (SA001)

Publication date: 2007-11-01
Reference number: SA001
Supersedes refnos: ENG031, ENG031R, KT2007062401

SERVICE ACTION: 2006.5MY OPTIMA (MG) 2.4L CALIBRATION VERIFICATION NUMBER/POWERTRAIN CONTROL MODULE REPROGRAM

TECHNICAL SERVICE BULLETIN

Reference Number(s): ENGINE 031 (REVISED), Date of Issue: November 01, 2007

KIA:	Optima (MG)
GROUP:	Engine

NOTE: A Service Action is a repair program without customer notification that is performed during the warranty period. Any dealer request to perform this repair outside the warranty period will require DPSM approval.

VIN inquiry data for this repair is provided for tracking purposes only from the Campaign Inquiry Screen, located within the Warranty Coverage Validation Inquiry section of the Dealer Communications System (DCS)

The issue number is SA001 .

Service Information

This service bulletin provides information related to the powertrain control module (PCM) upgrade for 2006.5 MY Optima models produced between 09/29/05 ~ 9/06/06. Some 2006.5 MY Optima vehicles with a 2.4L engine may experience a delay or communication errors when requesting the Calibration Verification Number (CVN) from the PCM with J1699 protocol devices or generic scan tools (non-KMA scan tools). During routine emission testing, the vehicle is connected to the emissions testing device and OBDII data is extracted from the vehicle's PCM. If the computer is unable to generate the CVN when prompted, the lack of communication would prevent a successful emissions report.

In order to provide consumer satisfaction, the PCM should be reprogrammed using the GDS download as described in this bulletin.

NOTE: Global Diagnostic System (GDS) users should access the "Notice" function from the GDS Main Screen for instructions regarding ECU upgrade events.

NOTE:

A fully charged battery is necessary before ECU upgrade can take place. DO NOT connect a battery charger to the vehicle during ECU upgrade. Make sure the blower motor is 'OFF' during ECU upgrade.
All ECU upgrades must be done with the ignition key in the 'ON' position.
Be careful not to disconnect any cables connected to the vehicle or GDS during the ECU upgrade procedure.
DO NOT start the engine during ECU upgrade.
DO NOT turn the ignition key 'OFF' or interrupt the power supply during ECU upgrade.
When the ECU upgrade is completed, turn the ignition key 'OFF' and wait 20 seconds before starting the engine.
ONLY use approved ECU upgrade software designated for the correct model, year and engine size. Failure to do so may create other driveability issues due to the use of the incorrect ECM/PCM calibration.

ROM ID INFORMATION TABLE

Cruise Control	PCM P/N		ROM ID
Cruise Control	Automatic Transaxle	Manual Transaxle	Previous	New
Y	39101 25140	39111 25130	G6C4MJ11 G6C4MK1A G6C4MM2A	G6C4MM3A

Service Procedure

Connect the power supply cable to the GDS tool.
NOTE: If attempting to perform the ECU upgrade with the power supply cable disconnected from the GDS tool, be sure to check that the GDS tool is fully charged before ECU upgrade. If the GDS tool is not fully charged, failure to perform the ECU upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS tool.
Connect the USB cable between the VCI and the GDS tool.
NOTE: When performing the ECU upgrade using the GDS tool, wireless communication between the VCI and GDS tool is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS tool.
Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.
Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.

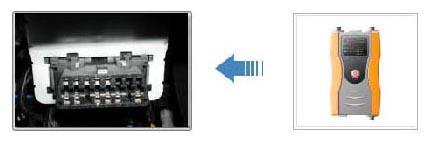

Fig 1: View Of OBD-II Connector
Courtesy of KIA MOTORS AMERICA, INC.
With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS tools vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.

Once back at the GDS Main Screen, select ECU upgrade from the bottom right-hand corner. Next select Auto Mode , Engine. Perform the ECU upgrade in accordance with normal GDS tool ECU upgrade procedures. This reprogram event will take approximately 18 minutes to complete.

NOTE: Do NOT attempt to perform a Manual Mode ECU upgrade unless Auto Mode fails. Always follow the instructions given on the GDS tool in either Auto or Manual mode. See table for Manual Mode passwords.

*MANUAL MODE ECU UPGRADE PASSWORDS

MENU	PASSWORD
01. MG 2.4 -IMMO : 39101-25140, 39111- 25130	5130
* Do NOT perform Manual Mode ECU upgrade unless Auto Mode fails.

When the GDS tool reports that the ECU upgrade has been successfully completed, click OK, turn OFF the ignition key, and wait at least 20 seconds before attempting to start the engine.
Check for Diagnostic Trouble Codes using the GDS and erase any DTCs stored in the Engine and Transaxle control modules. Confirm proper shift points of A/T units after reprogramming to reduce customer complaints of excessive shift shock and improper shift points.

AFFECTED PRODUCTION RANGE

2006.5 Optima (MG) vehicles produced from September 29, 2005 to September 6, 2006

WARRANTY CLAIM INFORMATION

Claim Type	Causal P/N	Qty.	N Code	C Code	Repair Description	Labor Op Code	Time	Related Parts	Qty.
V	39101 25140 (AT, w/cruise) 39111 25130 (MT, w/cruise)	0	N94	C40	ECU Upgrade	060053R0	0.4	NA	0
N94: Inoperative C40: Improper adjustment

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia Retailers should reference SA001 when accessing their Dealer Communications System (DCS).
