Back Up Lamp Switch Inspection

Disconnect the back up lamp switch connector (A).

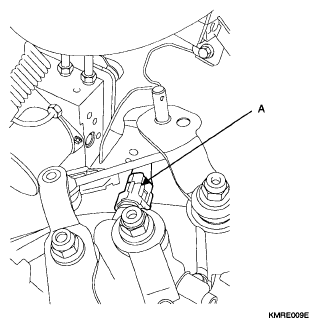

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Inspect the continuity of the switch. The switch terminals should show continuity with the shift lever in "R" range and should show open circuit (infinite resistance) with the shift lever in any other position.
Replace the back up lamp switch, if necessary.
TORQUE:

29.4-34.3 N.m (300-350 Kgf.cm, 21.7-25.3 lb-ft)
