Anti-Lock Braking System Control Module: Components

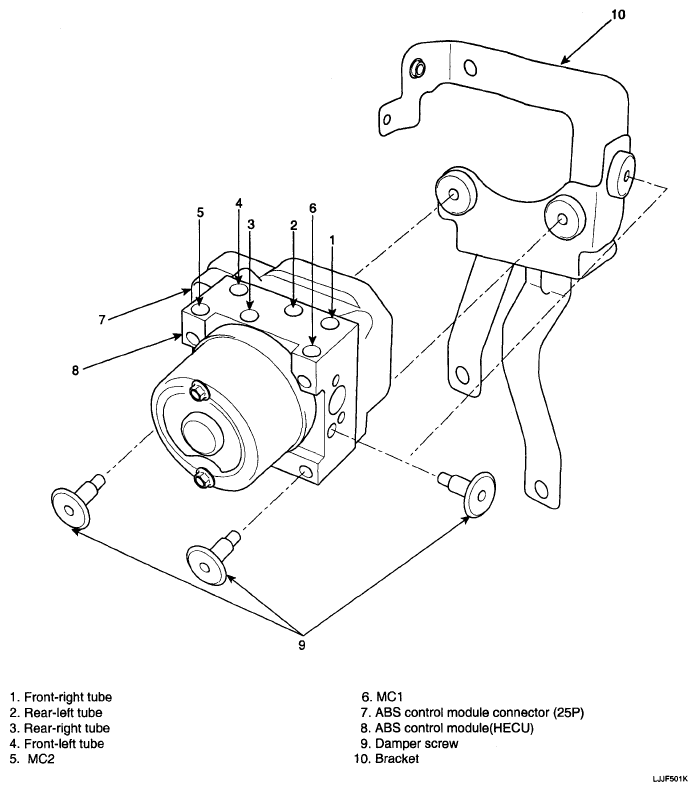

Fig 1: Identifying Anti Lock Braking System Control Module Components
G04863283Courtesy of KIA MOTORS AMERICA, INC.
