Continuous Variable Valve Timing: Components

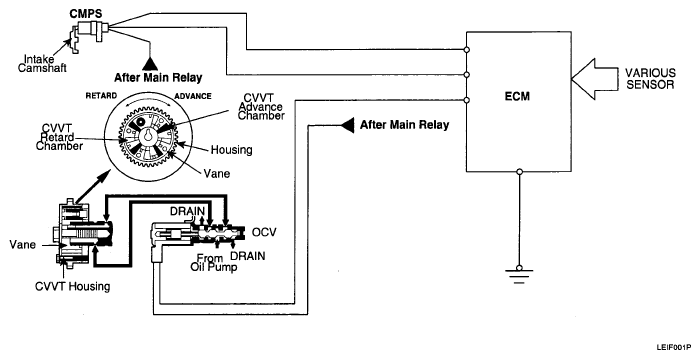

Fig 1: Identifying Continuous Variable Valve Timing Components
G04861999Courtesy of KIA MOTORS AMERICA, INC.
