Home › Kia › 2007 › Rio Base, Automatic › Repair and Diagnosis › Brakes › Traction Control › Abs (Anti-Lock Brake System) › Components

Abs (Anti-Lock Brake System): Components

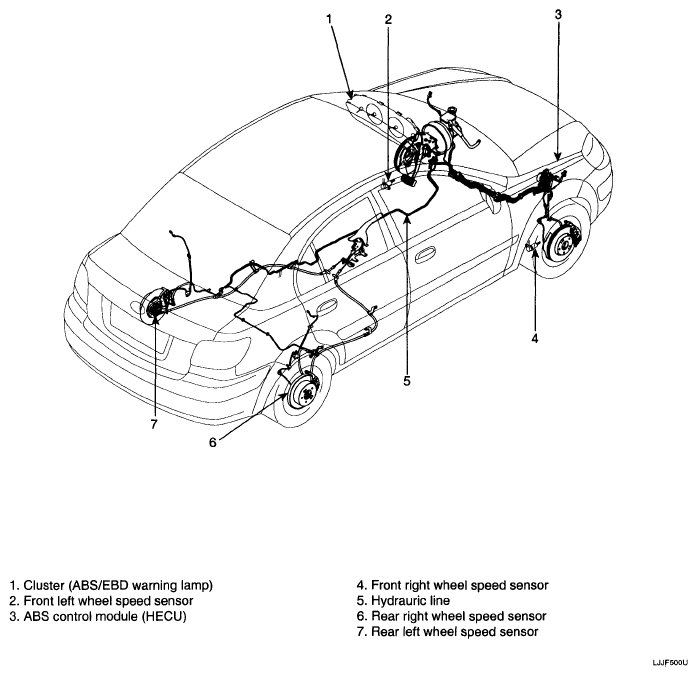

Fig 1: Identifying Anti Lock Brake System Components
G04863242Courtesy of KIA MOTORS AMERICA, INC.
