Home › Kia › 2007 › Rio Base, Automatic › Repair and Diagnosis › Electrical › Starter › Starting System › Starter › Component

Starting System: Starter: Component

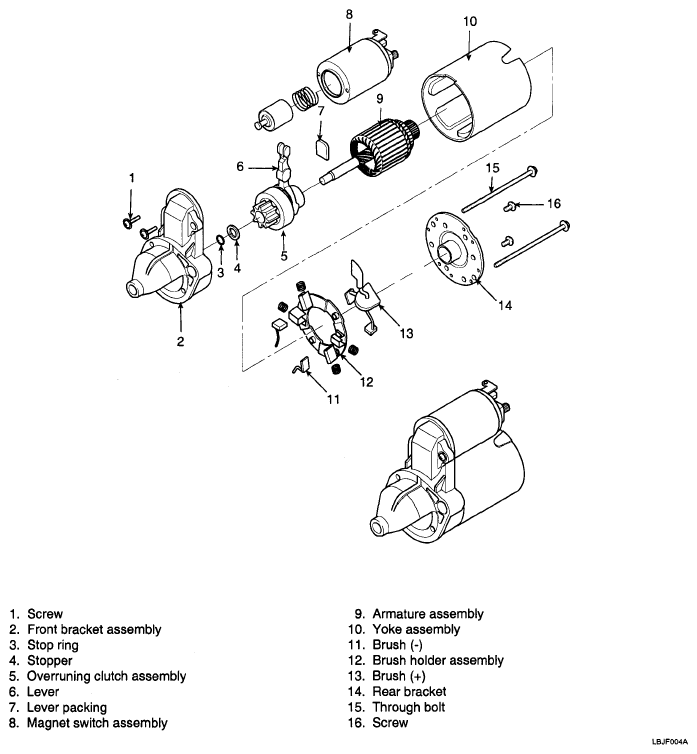

Fig 1: Identifying Starter Components
G04861962Courtesy of KIA MOTORS AMERICA, INC.
