Engine Block: Component

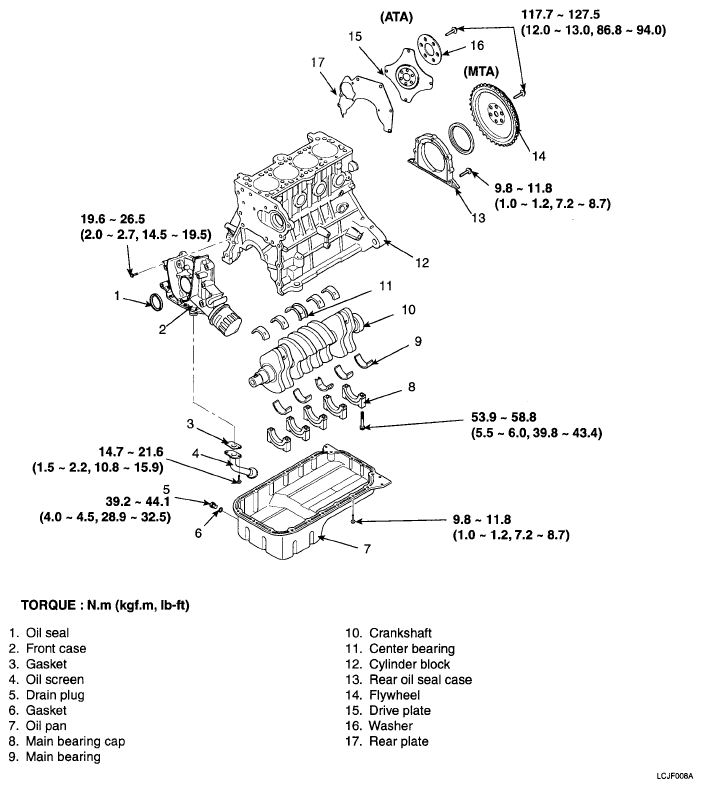

Fig 1: Identifying Engine Block Components And Tightening Torques (1 Of 2)
G04861784Courtesy of KIA MOTORS AMERICA, INC.

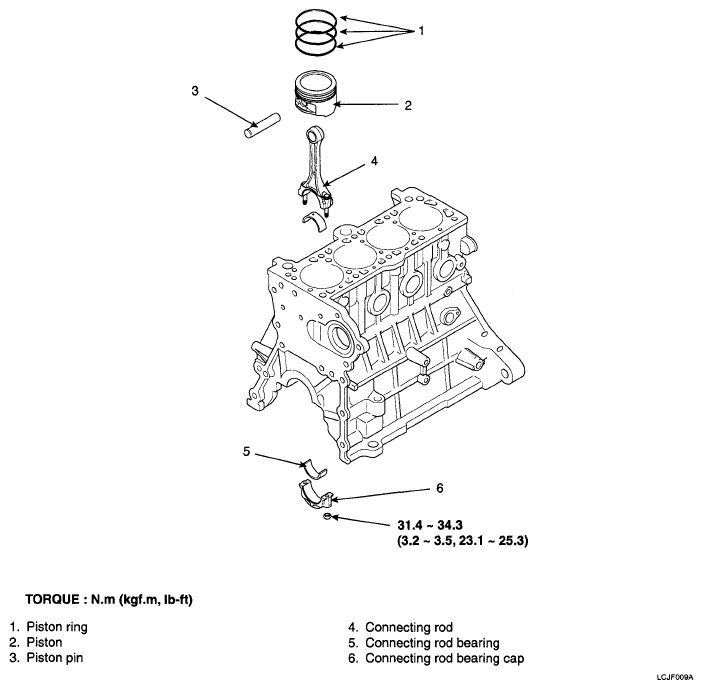

Fig 2: Identifying Engine Block Components And Tightening Torques (2 Of 2)
G04861785Courtesy of KIA MOTORS AMERICA, INC.
