Home › Kia › 2007 › Rio Base, Automatic › Repair and Diagnosis › Engine Mechanical › Lubrication System › Engine Overhaul › Timing System › Timing Belt › Component

Timing Belt: Component

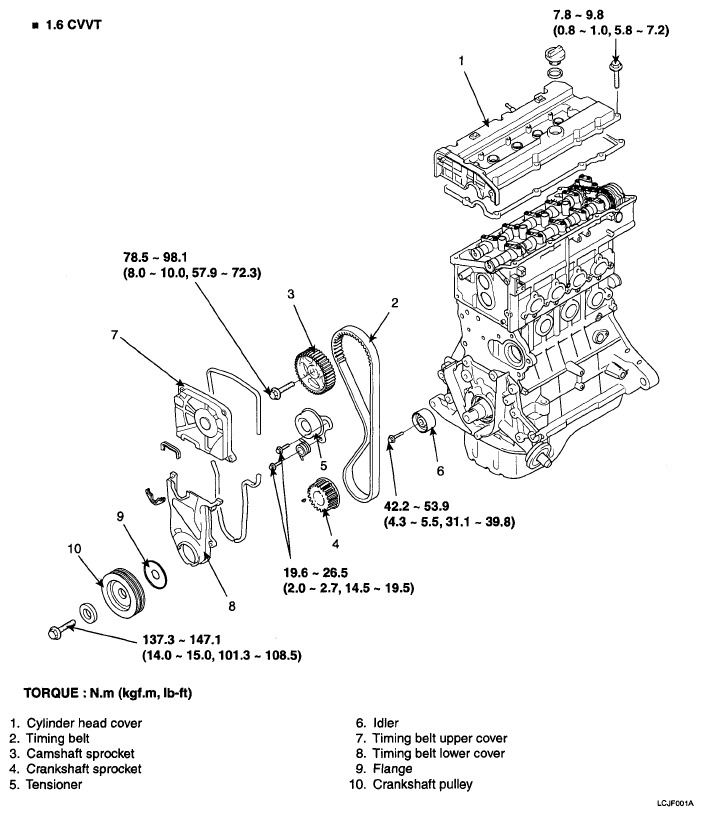

Fig 1: Identifying Timing Belt Components And Tightening Torques
G04861633Courtesy of KIA MOTORS AMERICA, INC.
