Front Hub / Knuckle: Components

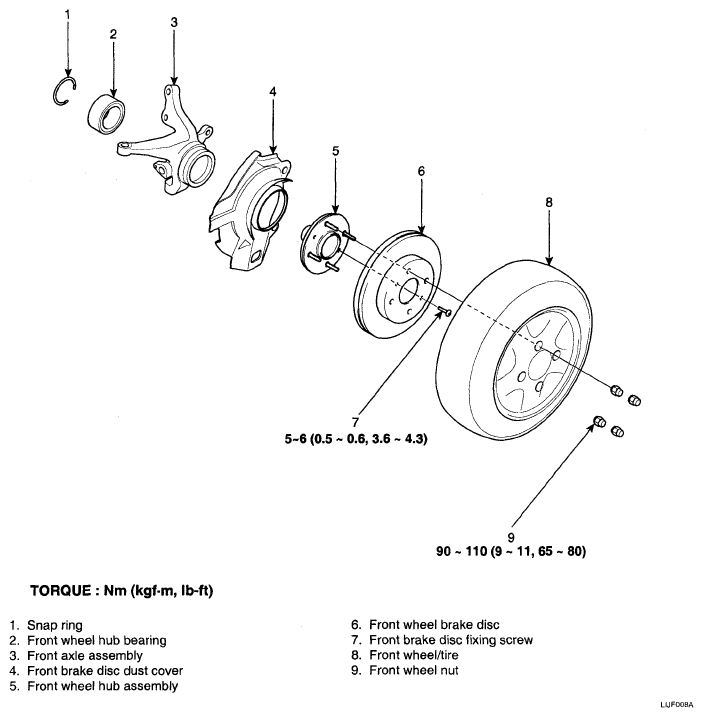

Fig 1: Identifying Front Hub/Knuckle Components Location
G04862748Courtesy of KIA MOTORS AMERICA, INC.
