Front Driveshaft: Components

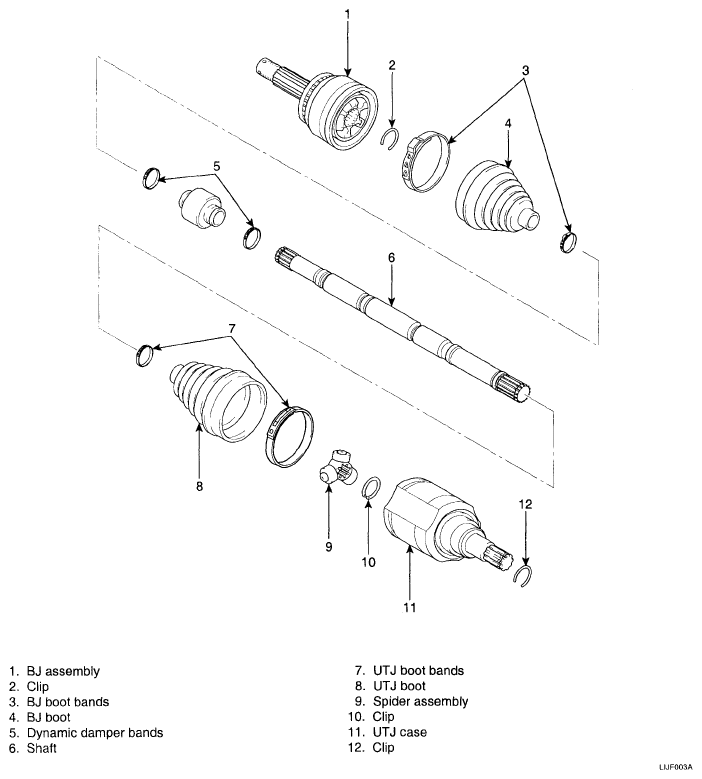

Fig 1: Exploded View Of Front Driveshaft Components
G04862727Courtesy of KIA MOTORS AMERICA, INC.
