Cooling System: Component

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

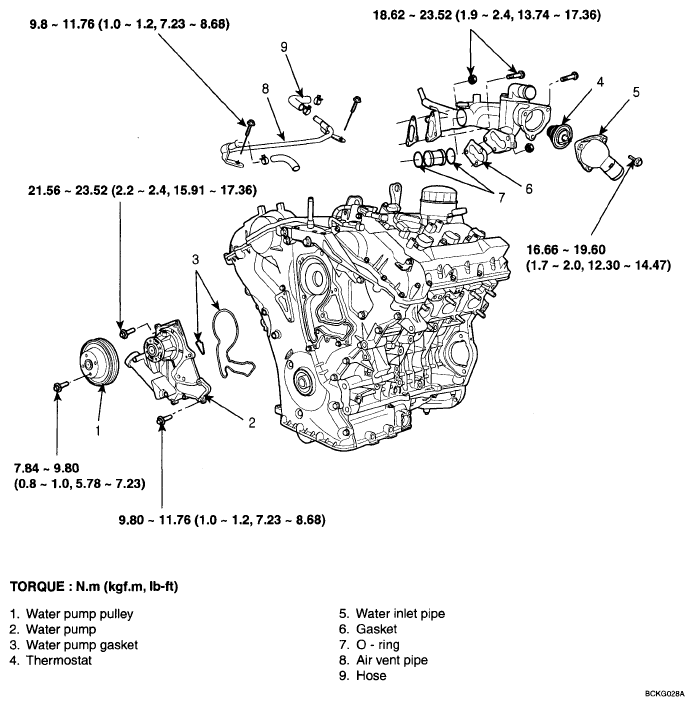

Fig 1: Cooling System Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

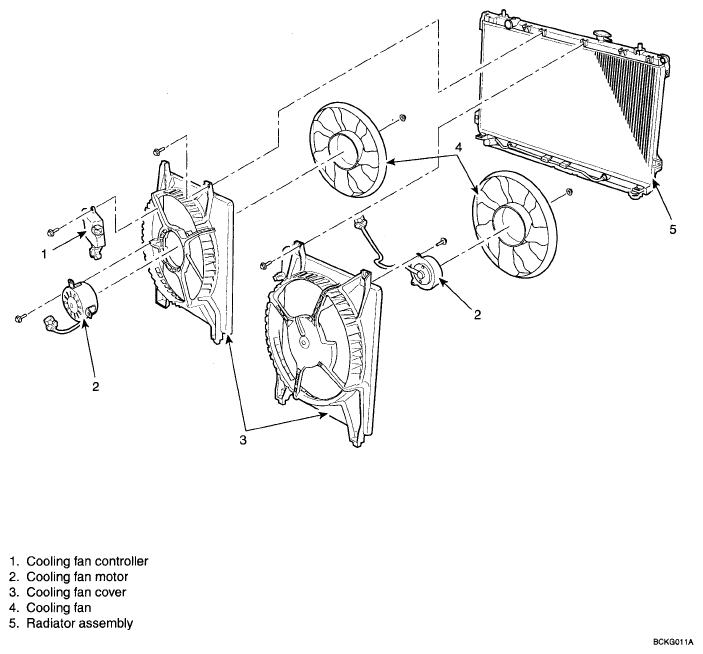

Fig 2: Identifying Radiator And Fan Components

Courtesy of KIA MOTORS AMERICA, INC.
