Water Temperature Control Assembly

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make clean the contact face before assembly.

Install water temperature control assembly (B) and new gasket (A).
Tightening torque

18.62-23.52 N.m (1.9-2.4 kgf.m, 13.74-17.36 lb-ft)

NOTE: Use new O-rings (C) when reassembling.

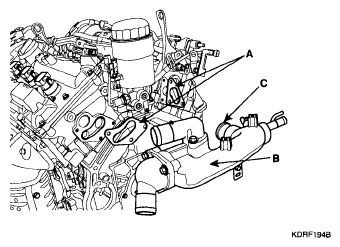

Fig 1: Identifying Water Temperature Control Assembly, Gasket And O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
Connect water hoses to the water temperature control assembly.
Install wiring protector.
Connect ECT connector.
Connect radiator upper and lower hose (A).

Fig 2: Locating Radiator Upper And Lower Hoses)
Courtesy of KIA MOTORS AMERICA, INC.
Install air cleaner assembly.
Fill with engine coolant.
Start engine and check for leaks.
Recheck engine coolant level.
