WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

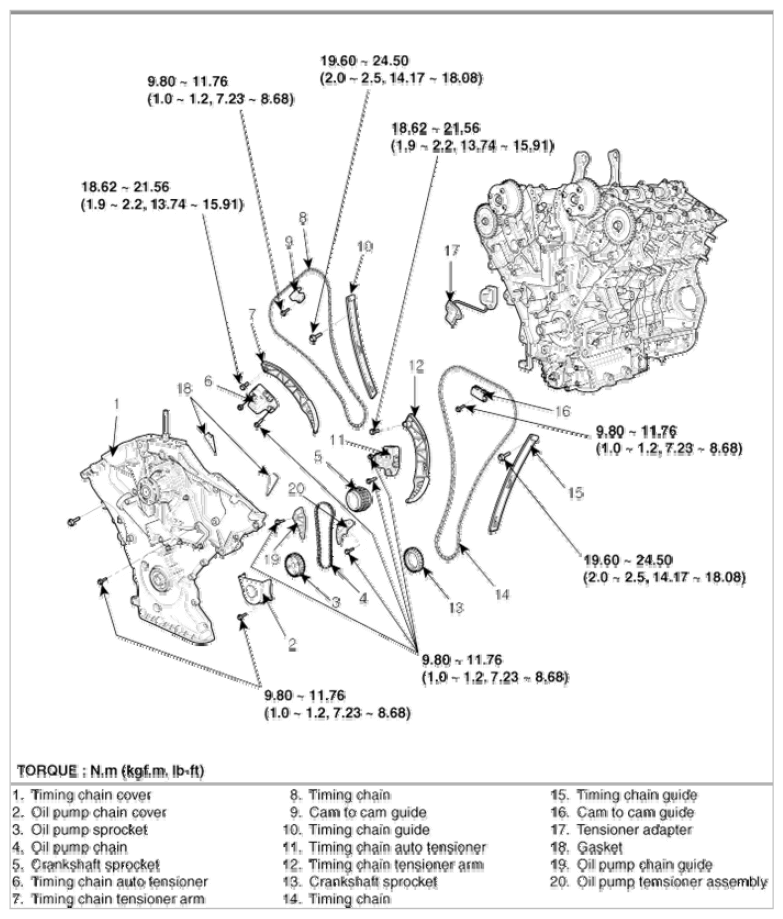

Fig 1: Identifying Timing Chain Components (1 Of 2)
Fig 2: Identifying Timing Chain Components (2 Of 2)
